Xpress-IVE Menus

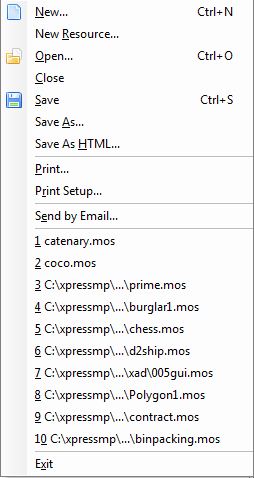

The File menu

New...: Create a new file.
New Resource...: Create a new resource file.
Open...: Open an existing file in the editor.
Close: Close the file currently shown in the editor.
Save: Save the file currently shown in the editor.
Save As...: Save the file currently shown in the editor under a different name.
Save As HTML...: Save the current file in HTML format, preserving formatting and colors. Example The HTML code can be copied to Microsoft Word or other rich text format editor, for inclusion in documentation, papers, etc.
Print...: Print the current file.
Print Setup...: Change printer settings.
Send by Email...: Send the current file by email if a registered MAPI handler exists.
Recently used files: Open one of the ten most recently used files.
Exit: Quit Xpress-IVE.

New...: Create a new Project.
Open...: Open an existing Project.
Close: Close the currently open Project.
Save: Save the currently open Project and any modified files contained within it.
Save As...: Save the currently open Project, under a different name, and any modified files contained within it. (Note that if you save the project file to a different directory, you will receive a warning that any files with relative paths will not be updated relative to the project's new location.) For more information on use of Projects in Xpress-IVE, see the Help entry on the Project Explorer Bar.

Navigation Toolbar: Show/hide the toolbar showing navigation buttons.
Execution Toolbar: Show/hide the toolbar showing execution buttons.
Tools Toolbar: Show/hide the toolbar showing debug tools buttons.
Model Explorer Bar: Show/hide the Model Explorer Bar.
Project Explorer Bar: Show/hide the Project Explorer Bar.
Info Bar: Show/hide the Info Bar.
Run Bar: Show/hide the Run Bar.
Line Numbers: Show/hide line numbering in the editor.
Left Margin: Show/hide a margin on the left side of the editor. Bookmarks will appear here.
Repair Window Layout: In case the bars in IVE are positioned wrongly or lost, select to reset the layout to the shipping default
Stochastic dashboard: Show/hide the Stochastic modeling dashboard when available.
Scheduling dashboard: Show/hide the Scheduling dashboard when available.

Compile: Saves and compiles the current .mos (Mosel) file. If there are compilation errors, they will appear in the Info Bar. If compilation is successful, the entity tree will be populated with entities from the model.
Run: Saves, compiles and executes the current .mos (Mosel) model. During the execution, the output from Mosel will go to the Output pane from the Run Bar. After the run terminates the entity tree will show actual values taken by variables in the Mosel model.
Pause: Uncheck this option to resume the execution after it has been paused.
Stop: Attempt to interrupt the execution of a model or an optimization by requesting that Mosel and the Optimizer stop. Mosel/the Optimizer will stop whenever it is safe to do so.
Options...: Shows the Run options dialog, allowing the user to change settings for Mosel or Optimizer runs. It can also be invoked while a Mosel model is executing or during the optimization of a matrix file. Changes will take effect immediately after the dialog is dismissed.
Export matrix...: Shows the Export matrix dialog for exporting matrices produced during Mosel runs to LP or MPS files.

Re/Set Breakpoint: Sets or removes a breakpoint on the current line.
Set breakpoint condition: Invokes the Breakpoint condition dialog.
Start/Continue: Saves, compiles and begins/resumes debugging the current .mos (Mosel) model. While debugging, the execution will stop at breakpoints or can be controlled manually by stepping into the code. When the execution is interrupted, values for all identifiers (including those with a local scope) are available. Also, the Debug watches in the Info bar are updated.
Step over: While debugging, advance the execution point by one line, stepping over functions/procedure calls.
Step into: While debugging, advance the execution point by one line, stepping into functions/procedures.
Run to cursor: While debugging, run to the line where the editing cursor is positioned.
Debug Options...: Shows the Debug Options dialog for modifying the behavior of the debugger.
Profile: Saves, compiles and begins running the current .mos (Mosel) model. Every monitoring feature in IVE will be turned off to eliminate overheads; statistics will be gathered regarding time spent on every line of Mosel code. At the end of the run, the profiler output will be produced.

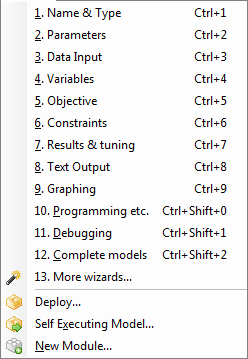

1. Name & Type Wizard: Invokes the Name & Type Wizard
2. Parameters Wizard: Invokes the Parameters Wizard
3. Data Input Wizard: Invokes the Data Input Wizard
4. Variables Wizard: Invokes the Variables Wizard
5. Objective Wizard: Invokes the Objective Wizard
6. Constraints Wizard: Invokes the Constraints Wizard
7. Results & tuning Wizard: Invokes the Results & tuning Wizard
8. Text Output Wizard: Invokes the Text Output Wizard
9. Graphing Wizard: Invokes the Graphing Wizard
10. Programming Wizard: Invokes the Programming Wizard
11. Debugging Wizard: Invokes the Debugging Wizard
12. Complete models Wizard: Invokes the Complete models Wizard
13. More wizards...: Invokes the Wizard viewer without selecting any particular wizard
Deploy...: Opens the Deploy dialog.
Self-Executing Model: Opens the Self-Executing Model dialog.
Create a new module: Opens the New Module Wizard dialog.

Optimize matrix file...: Shows the Optimizer dialog which allows for the optimization of matrices in LP or MPS format.
Repair infeasible problem...: Shows the Optimizer dialog with options for relaxing an infeasible problem.
Find N best solutions...: Shows the Optimizer dialog which options for finding alternate optimal solutions.

Xpress-IVE Help...: Opens this help system.
Xpress Help...: Opens the comprehensive Xpress Help system which includes in-depth documentation on all Xpress products.
About Xpress-IVE...: Shows the About dialog, including version and copyright information.
