Purpose

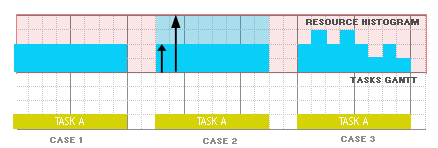

Creates a resource usage. A resource usage is a means to specify the way that a resource will be produced/consumed/provided/required by a task. Three types of resource usages can be used:
- CASE 1: Constant resource usage. This is the simplest case where the resource usage is constant all along the execution of the task. For example a task A will require 2 units of resource R during its execution.
- CASE 2: Variable resource usage but constant over the execution of the task. This case allows the resource usage to be variable but constant during the execution of the task. Therefore, a decision variable is associated with the resource usage that can be constrained like any other variable. For example a task A will require between 2 units and 4 units of resource R during its execution.
- CASE 3: Variable resource usage over the execution of the task. This case allows the resource usage to vary during the execution of the task using a resource usage profile defined as a list of integers. For example a task A will require [2,3,2,3,2,1,2,1] resource units wich means '2' for the first timestep of its execution; '3' for the second etc.. If the duration of the task exceeds the length of the profile, then the resource usage is considered as 0 after the end of the profile. If the task duration is smaller than the length of the profile, the profile will be truncated to the duration of the task.
Synopsis
function resusage(resource:cpresource, usage:integer) : cpresusage
function resusage(resource:cpresource, usagemin:integer, usagemax:integer) : cpresusage
function resusage(resource:cpresource, profile:array of integer) : cpresusage
Arguments
|
resource
|
the resource
|
|
usage
|
the constant resource usage
|
|
usagemin
|
minimal resource usage
|
|
usagemax
|
maximal resource usage
|
|
profile
|
profile of resource usage
|
Example
The following example illustrates this:
model "Non constant resource usage"
uses "kalis"
forward procedure print_solution(tasks: set of cptask,
resources: set of cpresource)
declarations
res1,res2: cpresource
taska,taskb,taskc: cptask
end-declarations
taska.start <= 15
taska.duration = 4
taskb.start <= 15
taskb.duration = 3
taskc.start <= 15
taskc.duration = 5
! Define a discrete resource with periods of unavailability
set_resource_attributes(res1, KALIS_DISCRETE_RESOURCE, 6)
setcapacity(res1, 0, 15, 0)
setcapacity(res1, 1, 5, 6)
setcapacity(res1, 7, 11, 6)
requires(taska, {resusage(res1,[1,3,5,6])})
requires(taskb, {resusage(res1,[5,3,1])})
requires(taskc, {resusage(res1,1,1)})
! Define a resource with initial capacity at 0
set_resource_attributes(res2, KALIS_DISCRETE_RESOURCE, 0)
provides(taska, resusage(res2,[1,3,1,2]))
consumes(taskb, resusage(res2,[3,1,2]))
produces(taskc, resusage(res2,[3,1,2,0,2]))
if not cp_propagate then
writeln("Problem is infeasible"); exit(1)
end-if
while (cp_find_next_sol) do
print_solution({taska,taskb,taskc},{res1,res2})
end-do
!-------------------------------------------------------------
!**** Display results ****
procedure print_solution(tasks: set of cptask,
resources: set of cpresource)
forall(res in resources) do
writeln("Resource ", res.name)
forall(timeindex in 0..getub(getmakespan)) do
write(strfmt(timeindex,3), " Cap: ", getcapacity(res,timeindex))
forall(t in tasks)
if getrequirement(t,res,timeindex)>0 then
write(", ", t.name, "(req):", getrequirement(t,res,timeindex))
elif getproduction(t,res,timeindex)>0 then
write(", ", t.name, "(prod):", getproduction(t,res,timeindex))
elif getconsumption(t,res,timeindex)>0 then
write(", ", t.name, "(cons):", getconsumption(t,res,timeindex))
elif getprovision(t,res,timeindex)>0 then
write(", ", t.name, "(prov):", getprovision(t,res,timeindex))
end-if
writeln
end-do
end-do
end-procedure
end-model
