Authenticating the Xpress Executor Web Service

Now that we have finished creating our input and results pages, we are ready to authenticate our web service using the DMP.

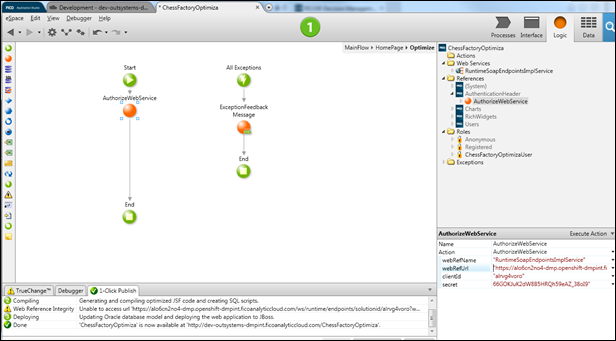

Authenticate the Xpress Executor component by double-clicking on the Optimize button to open the action flow associated with it. Place an AuthorizeWebService action immediately after the start of the flow.

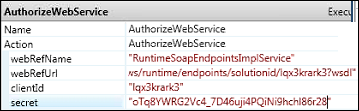

This requires the following four properties:
- webRefName: set to "RuntimeSoapEndpointsImplService" (include the quotes in your entry).
- webRefUrl: the SOAP URL of the Xpress Executor web service.
- clientId: see the next step in this tutorial.
- secret: see the next step in this tutorial.

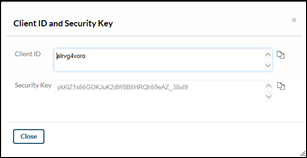

To determine the clientId and secret, return to your solution in DMP. Click the key icon beside the security name to open the following security dialog:
Copy the Client ID and Security Key into the AuthorizeWebService action's 'clientId' and 'secret' properties.

Note Be sure to paste both strings within quotes:
