Adding a VDL View to the Example App

Having declared a view in the cfile, you must create a related VDL file to contain the user interface elements - Xpress Insight expects this to be stored in the client_resources directory.

Declare your first VDL view by changing the cfile ( foliodata.xml) so that it now looks like:

<?xml version="1.0" encoding="UTF-8"?>
<model-companion
xmlns="http://www.fico.com/xpress/optimization-modeler/model-companion"
version="3.0">
<client>
  <view-group title="Portfolio Optimization">
    <vdl-view title="Portfolio" path="foliodata.vdl"></vdl-view>
  </view-group>
</client>
</model-companion>

Note how the <vdl-view> element is contained within the <view-group> element, that it has a title called Portfolio Optimization and a path attribute that points to foliodata.vdl, which by implication is found in the client_resources folder.

Create a file called foliodata.vdl in the client_resources folder:

<vdl version="4.1">
    <vdl-page>
        <vdl-section heading="Welcome to Portfolio Optimization">
        </vdl-section>
    </vdl-page>
</vdl>

VDL files all have a <vdl> element at their root.

<vdl-page> elements are containers for view contents, and each view must contain one such element.

<vdl-section> elements are used to organize page content. For smaller pages, you might only use one section, but for larger pages, it is a good idea to separate your page content into several sections to demarcate your app's boundaries. Here, the one <vdl-section> element used has a heading attribute Welcome to Portfolio Optimization.

Republish your app in Xpress Insight and examine its user interface. If the Entity Explorer is still in view, select Advanced > Portfolio Optimization > Portfolio from the drop-down menu available in the top-left tab of the central browser pane.

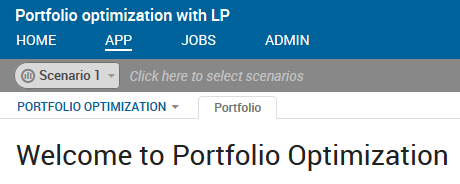

A First VDL View

The Advanced view group - from which you could select the Entity Explorer option, has been joined by the Portfolio Optimization view group, as was configured in the cfile.

The Portfolio tab arises because it is the title of the view specified in the <vdl-view> element in the cfile.

The Welcome to Portfolio Optimization message was configured as the heading of the single <vdl-section> element in the foliodata.vdl file.

It's a simple, initial static view that hasn't yet been linked to model data.
