Configuring Your Component

Now that we have added the Xpress Executor component to a solution, we will need to configure the component before we can use it.

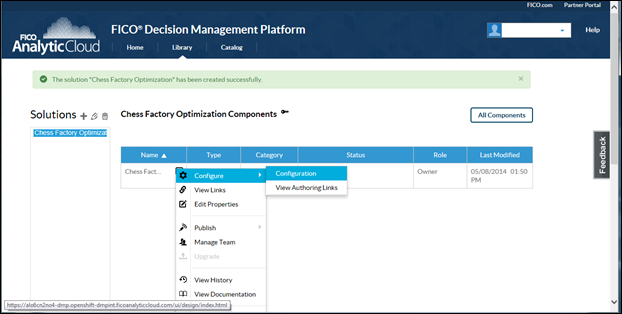

  1. Click on the drop-down arrow beside the component name and choose the Configuration option.

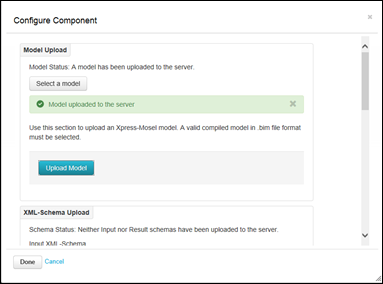

  2. From the Model Upload section, click Select a Model and choose the bim file we created earlier. Click Upload Model to add the model to your component.

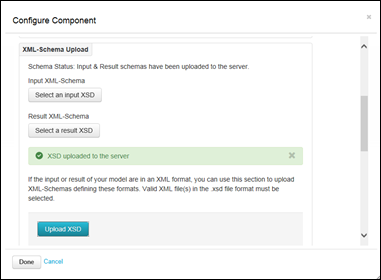

  3. Scroll down to the XML-Schema Upload section as shown here.
  4. Click Select an input XSD and choose the input.xsd file created earlier when we ran the model.
  5. Click Select a result XSD and choose the result.xsd file created earlier when we ran the model.
  6. Click Upload XSD to configure the input and result formats of the component.
Parent Topic FICO® Xpress Executor Tutorial
