Modifying Table Configurations

Tables created in the View Designer, and in the Code editor are based on the DataTables open source project. For more, see http://www.datatables.net.

You can add DataTables-specific options to a table by using a table modifier in the code editor. Set the modifier attribute to an expression that references a function. The function is called before the table is drawn and prior to each table update. It is passed a configuration object and returns a modified version of that object.

The configuration object contains a property called overrides that can be used to add any of the DataTables configuration options.

In this example, a modifier is applied to a table that adds the DataTables scrollY option, making it scrollable.
<vdl version="4.6">
    <vdl-page>
      <script>
        function scrollableTable(config) {
          config.overrides.scrollY=200;
          return config;
        }
      </script>
      <vdl-section heading="Modifying Table Configurations">
        <vdl-table modifier="=scrollableTable">
          <vdl-table-column entity="RET" size="6" render="=function(data,type,row) {return data + ' units';}">Return per share</vdl-table-column>
        </vdl-table>
      </vdl-section>
    </vdl-page>
</vdl>

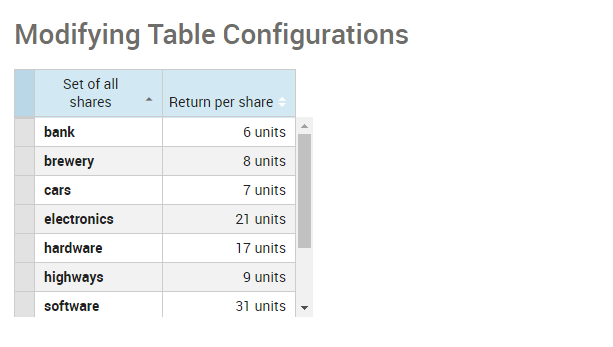

Rendered View of Table Modifier

Rendered View using modifier

Because the table modifiers are just functions that accept a table configuration object and return a new one, you can easily apply functional composition. The Lodash library provided with the JavaScript API helps when chaining multiple function calls:
<vdl version="4.6">
  <vdl-page>
	<br/>
	<script>
		function scrollableTable(config) {
			config.overrides.scrollY=200;
			return config;
		}

		function makeEditable(config) {
			config.columnOptions.forEach(function (columnOptions) {
				if (columnOptions.title) {
					columnOptions.title=columnOptions.title + '(editable)';
					}
				columnOptions.editable=true;
				});
			return config;
		}

		function logTableConfig(config) {
			console.log('vdl-table config (' + config.tableId + ')', config)
			return config;
		}
	</script>
		<vdl-section>
			<vdl-table modifier="=function(config) {
				return _.flow(scrollableTable, makeEditable, logTableConfig)(config)
				}" width="500">
				<vdl-table-column entity="RET" size="6"></vdl-table-column>
			</vdl-table>
		</vdl-section>
	</vdl-page>
</vdl>

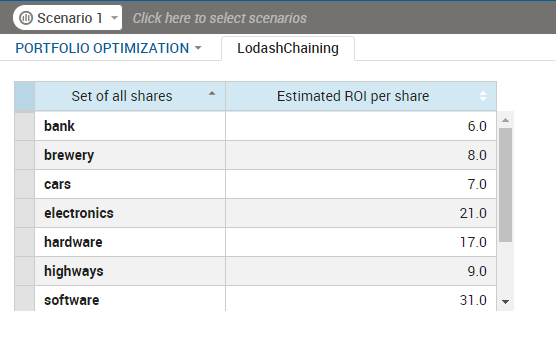

Rendered Result using lodash
