Layout Rules

When you create multiple Section (vdl-section) elements within a Page (vdl-page), the sections will be stacked vertically. Row (vdl-row) elements within Sections are also stacked vertically. Column (vdl-column) elements using the default size (full width) will be vertically stacked within Rows.

Row Layout

Each Row is proportionally divided into twelve units, and each column can be assigned a width in units. Columns are aligned horizontally within a Row. Columns which do not have a size attribute assigned are equally distributed across the Row. If you have two or more Columns within a row that have size attributes defined, any Column on a Row that exceeds the width limit will be wrapped to a new line in the Row. Note that the Offset attribute on a Column is subtracted from the overall width available in the Column when calculating space on a Row.

Column Layout

Content within Column elements is stacked vertically. If you require inline elements, such as <span>, <a>, or <img>, to flow side-by-side then you can use a Container (vdl-container) to wrap these elements. So, for example, you could put multiple <span> elements within a Container to construct a paragraph made up of static and dynamic text.

Code editor

<vdl version="4.7">
    <vdl-page>
        <vdl-section>
            <vdl-row>
                <vdl-column heading="Flowing text">
                    <vdl-container>
                        <span vdl-text="Scenario: "></span>
                        <span vdl-text="=scenario.props.name"></span>
                    </vdl-container>
                </vdl-column>
            </vdl-row>
        </vdl-section>
    </vdl-page>
</vdl>

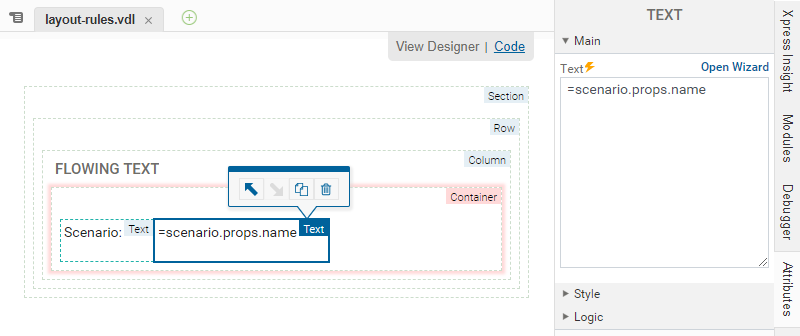

View Designer

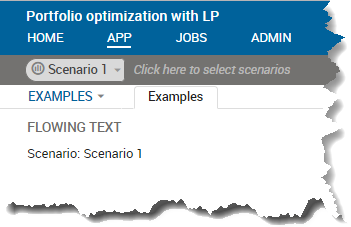

Published Result in Xpress Insight
