Adding an Attachment in Development

Adding an attachment while developing an Xpress Insight app can be as simple as creating a file in the attachments directory.
The example project is to be extended by loading some standard investment warning advice from a string stored in an app-level attachment. Initially, it will contain placeholder text, but later, it will be edited and updated from the app itself, demonstrating how the model interacts with attachments.
  1. Create a file called caution.txt and save it in your app's attachments folder - its contents should be:
    cautionText:"** Text to be replaced **"

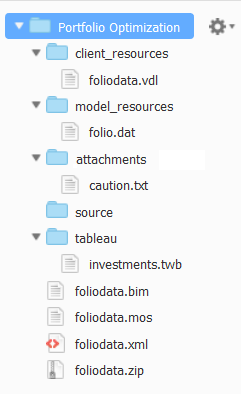

    The organization of your app now looks like:

    Adding an Attachment

    Folder Hierarchy After Adding an Attachment

  2. Change the parameters section of foliodata.mos so that it contains an entry for the name of the relevant attachment:
    parameters
    ! Name of attachment to contain caution text
    CAUTIONTEXT = "caution.txt"
    ! File with problem data
    DATAFILE = "folio.dat"
    ! Output file
    OUTFILE = "result.dat"
    ...
end-parameters
  3. Change the first public declarations section of foliodata.mos so that it contains a declaration for the string value to be ultimately read from caution.txt:
    public declarations
    ...
    RET: array(SHARES) of real
    changeShare: string
    cautionText: string
 end-declarations
  4. Change the datainput procedure in foliodata.mos so that it now reads:
    ! Load input data
 procedure datainput
  if insightgetmode <> INSIGHT_MODE_NONE then
  ! Model is running within Insight, so download attachment from Insight server
    insightgetappattach(CAUTIONTEXT)
    if insightattachstatus<>INSIGHT_ATTACH_OK then
      writeln("Failed to download app attachment")
      exit(1)
    end-if
  end-if

  initializations from DATAFILE
    RET RISK NA
  end-initializations
  initializations from CAUTIONTEXT
    cautionText
  end-initializations
  changeShare:= "brewery"
end-procedure
    Note Attachment retrieval should always be accompanied by a status (error) check.
    The call to insightgetappattach causes Xpress Insight to locate the caution.txt file in attachments, and copy it into its working directory, whereupon it can be manipulated using Mosel's standard data manipulation functions.

    The second call to initializations initializes the cautionText value with that assigned in caution.txt - i.e. ** Text to be replaced **.

  5. Change foliodata.vdl so that its first few lines now read:
    <vdl version="4.7">
   <vdl-page>
     <vdl-section heading="Welcome to Portfolio Optimization"
                  heading-level="1">
       <span vdl-text="=scenario.entities.cautionText.value"></span>
     <vdl-section heading="Return per share" heading-level="2">
...
    The <span> element has a vdl-text attribute that uses an expression to evaluate and insert the runtime value of the cautionText entity.
Parent Topic Using Attachments
