Configuring and Deploying a FICO Xpress Executor Component

Xpress Executor's main Configuration page provides the following options:

• Model Upload
  Select and upload a compiled Mosel model (.bim file), solve a model that requires multiple files or choose to solve MPS or LP models. If your model requires multiple files, for example for sub-models, or if your model requires some fixed data files, you can provide a ZIP file.

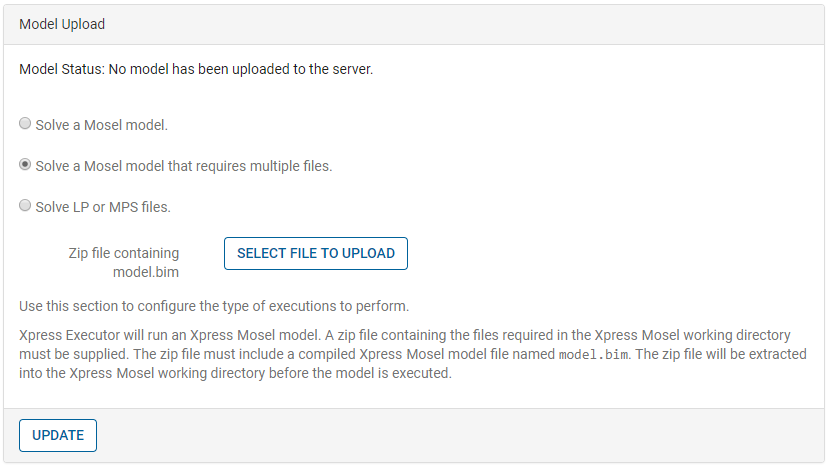

  Providing Multiple Files to a Model Executor

• XML-Schemas
  When integrating with FICO ^® Analytic Studio, select and upload the input.xsd and result.xsd files that are generated when you run your model.

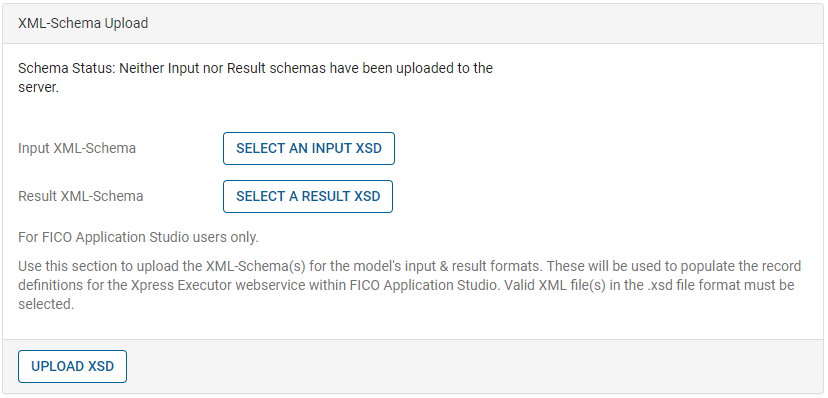

  Schema Upload

  Note If you are not calling an Xpress Executor component from FICO Application Studio, this option is not applicable.

• Result Retention
  The results of completed executions will be automatically removed from the repository after they reach the age limit you specify here. Note that you can also delete individual executions by calling the relevant web service endpoint.

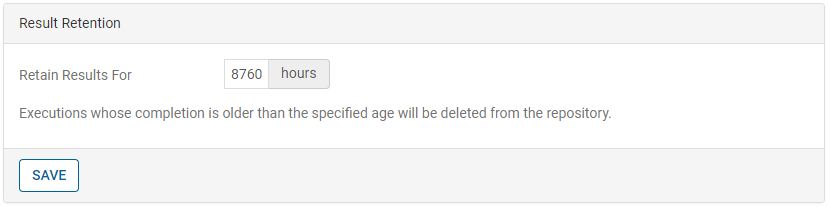

  Setting the Result Retention Period

• Xpress Service Configuration:

  Set the number of allowable concurrent model executions. The solution builder should adjust this to control utilization of component resources. For example, the standard Xpress Executor component has 4 vcores and 16GB of RAM. If a model is known to use 4GB to solve, it is recommended that you use no more than 3 concurrent models to allow some RAM for the component itself. If a model is written to use more than 1 thread for performance, then the concurrency might need to be reduced further to avoid CPU contention.

  You can also choose to reuse Mosel instances for multiple executions. By default, Xpress Executor creates a new process each time it solves a model, but by checking the Re-use Mosel instances for multiple executions checkbox, the process can be reused.

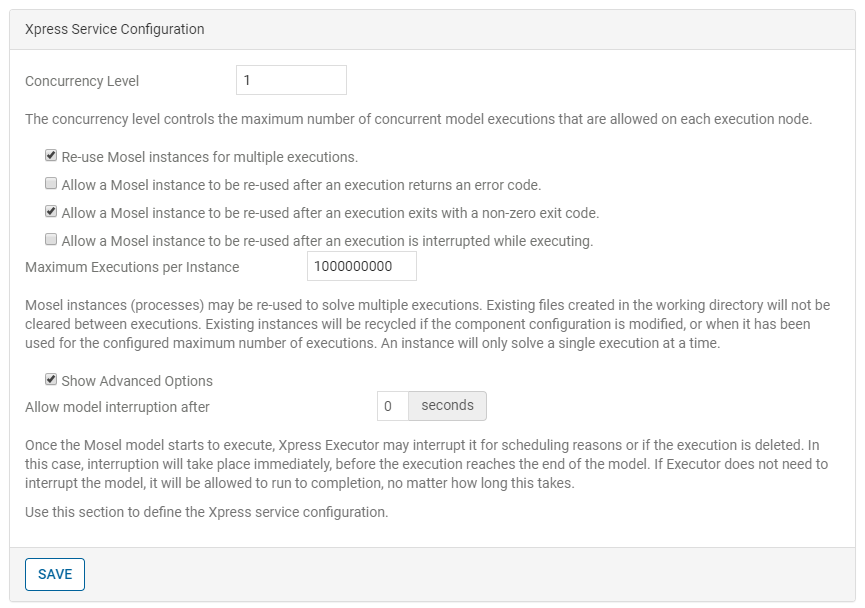

  Configuring the Reuse of Mosel Instances

  If you elect to reuse Mosel instances, note that:

  • Mosel instances (processes) are reused, but Xpress Executor creates multiple instances to solve multiple executions concurrently.
  • All files in the reused working directory not called input or result are retained between model executions. This can be used to cache files from one execution to the next - for example, a configuration file downloaded from S3.
  • The model ZIP file is only extracted into the working directory on the first execution of an instance - the model must leave the work directory in a suitable state to be reused by a subsequent execution, so for example, you should not overwrite required input files.
  • If you allow a Mosel instance to be re-used after an execution either fails with an error code, or is interrupted while executing, your model must not rely on the working directory or any in-process structures being left in a "clean" state by the previous execution, as it may have stopped before its natural end.

  If you have a model that is normally quick but has a large set-up cost the first time it is executed in the Mosel instance, you can choose to allow the model to be interrupted after a non-zero number of seconds has been passed; this gives an interrupted model a chance to complete naturally and leave the work directory in a consistent state for the next execution. The result data from an interrupted model will not be saved regardless of this setting.

• Model Parameters
  Set key-value parameters to be passed to the model. Consult the model developer for the possible model-specific parameters.

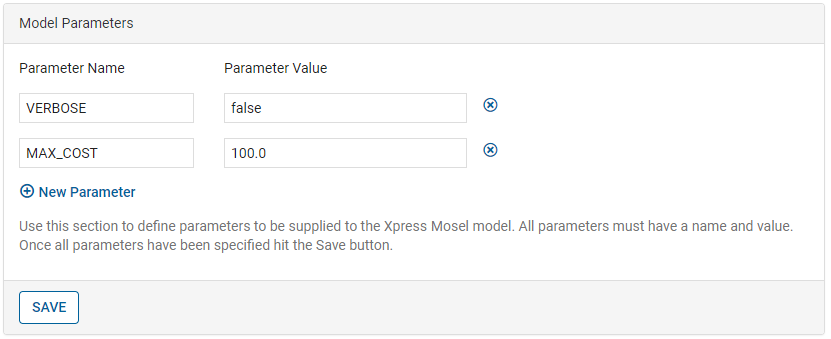

  Setting Model Parameters

• Service Hostnames
  These settings should only be changed on direction of FICO IT services, and are provided for information only.

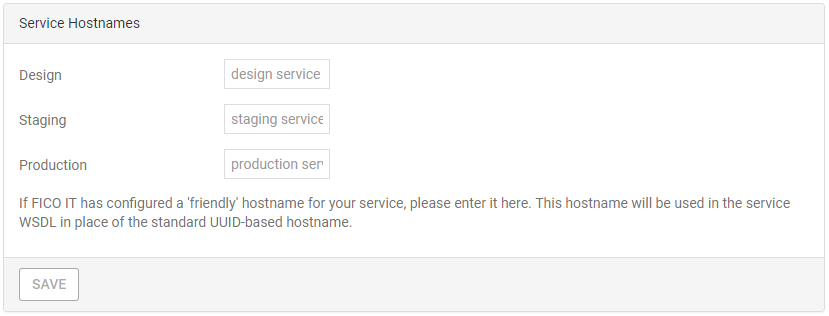

  Viewing Service Hostnames
