Using the Desktop version of Workbench

If you wish to use the Desktop version:
  1. Click Create Project.
  2. Click CREATE INSIGHT (MOSEL) PROJECT.
  3. You must now select a location for the Project—The new Project will be named after the containing folder, so create a folder named Portfolio Optimization, and click OK.
    Xpress Workbench launches your new project in which it has created a template application structure. Examine the contents of the vertical Project tab:

    A New Optimization Designer Workspace

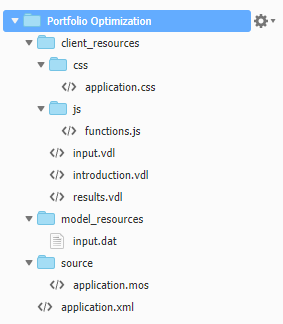

    A New Xpress Workbench Project

    This arrangement of new files and folders is designed to help you start quickly with a new Xpress Insight app.
  4. Drag and drop your prepared files onto the Project explorer pane— shares.csv must be added to the model_resources folder and foliodata.mos can be added to the Portfolio Optimization project root folder.
    The project structure now appears as:

    Uploaded Model Source and Data Files

    Uploaded Model Source and Data Files

  5. In the Run menu, choose Run foliodata.mos and wait a few moments.
  6. Review the contents of the debugger pane below the code window.
    It contains:
    Compiling foliodata.mos to out\foliodata.bim with -g
Running model
Loading data.
Loading finished.
Starting optimization.
Expected total return    14.09
Total high risk shares    0.33
Total North-American      0.45
Largest position          0.25
Optimization finished.
Process exited with code: 0
    This reveals that the maximum achievable ROI is 14.09, and that based on the model's constraints, as defined in shares.csv.

The model has been run in its native form as a Mosel model, albeit called and executed by Xpress Workbench.

Parent Topic Running the Mosel Model in Xpress Workbench
