Customizing Cell Rendering

The display characteristics of table cells can be controlled by providing a render function per column.
Note Number formatting is explained in more detail in the next section.

Code editor

The render function accepts three arguments:
  • The cell value.
  • The cell render action: filter, display, type or sort. These correspond to the actions performed when cells are rendered—in most cases, you can ignore this and return the same value for all render actions.
  • The values from each cell in the corresponding row.

The render function can be provided inline within the vdl-table-column render attribute, or you can reference a function that has previously been defined in the view, allowing functions to be shared between multiple columns.

The following example includes a shared formatter which is used to format the values for sales resource allocation into percentages, together with an inline function that performs a simple transformation.
<vdl version="4.7">
  <vdl-page>
        <script>
            function formatFrac(original) {
                return insight.Formatter.formatNumber(original, '00%');
            }
        </script>
        <vdl-section heading="Welcome to Portfolio Optimization" heading-level="1">
            <vdl-row>
                <vdl-column heading="Recommended share allocations" heading-level="3">
                    <vdl-table page-mode="paged" page-size="5" show-filter="true" column-filter="true">
                        <vdl-table-column entity="Shares_fraction" size="2" render="=formatFrac"></vdl-table-column>
                        <vdl-table-column entity="Shares_Return" size="2" render="=function(data, type, row) { return data + ' percent';}"></vdl-table-column>
                    </vdl-table>
                </vdl-column>
            </vdl-row>
        </vdl-section>
    </vdl-page>
</vdl>

Render Function Applied to Table Cells

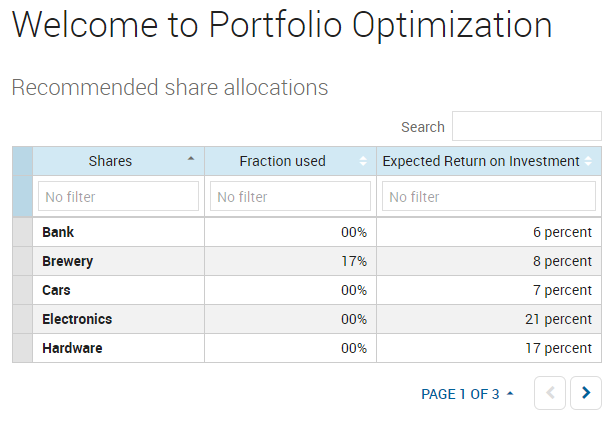

Which renders as follows:


Rendered View of Customized Cells

The next example includes taking an action dependent upon the type argument passed to the italic function:
function italic(data, type, row) {
    data = data ? data : '';
    if (type === 'display') {
        return 'Italic text ' + _.escape(data) + '';
    } else if (type === 'copy') {
        return data + ' (in italics)';
    }
    return data;
}
In this case, if the cell is rendered following a copy action, the contents of the cell are rendered in italics.
Parent Topic Working with Tables
