Creating a Basic AutoTable

The markup for a basic AutoTable is a standard HTML table tag with an id identifier.

<table id="example1"></table>

The table tag is transformed into an AutoTable using the following view code:

var view = insight.getView();
var observer = view.withFirstScenario();
observer
        .bindAutoTable({
            tableId: 'example1',
            columnOptions: [
                {name: 'Array1'}
            ]
        });
view.start();

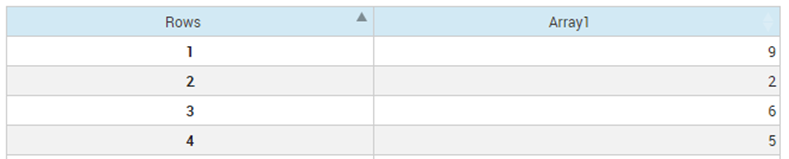

The data for the AutoTable is fetched from the array named Array1. The following shows the resulting AutoTable:

Resulting AutoTable

Note The index set Rows for Array1 has been included in the resulting table.

By default AutoTable will show all data to the user. This will not be practical for larger data sets. AutoTable can be configured to paginate through a large data set. To paginate the AutoTable, an overrides key should be added to the configuration that takes a nested child JavaScript Object as its value. This object allows us to pass in many of the DataTables options, as shown in the following example:

overrides: {
    bPaginate: true,
    iDisplayLength: 10
}

bPaginate and iDisplayLength are both options that get passed in to the DataTables code. See the http://datatables.net website for details on all the options that are available.

Note Only arrays with unique index sets can be displayed in an AutoTable. If an array uses the same index set more than once, an error will be logged and the table will not be drawn.

Filtering

AutoTable can be configured to present a filter to the user. This allows the user to narrow the table to show relevant data. A filter can be added using the following configuration:

overrides: {
    bFilter: true
}

By default, filtering is based on the underlying data. However, filtering can be configured on displayed values (such as displaying the value 1000 as 1,000) using the columnOptions tag:

columnOptions: [
        {
            name: 'Array1',
            filterByFormatted: true
        }
    ]

In some circumstances, this can make it easier for the user to search for data in the table.

Layout

By default, an AutoTable will occupy all space available in the parent container. To constrain the width of the AutoTable, first set the default width that should apply to all columns using the overrides tag, and then explicitly specify the width of specific column using the columnOptions tag:

overrides: {
    bAutoWidth: false,
    aoColumns: [
        {
                sWidth: '20px'
        }
    ]
},

columnOptions: [
        {
            name: 'Array1',
            width: '40px'
        }
    ]

The preceding code fragment will style the index set column to be 20px wide and the Array1 column as 40px width. To enforce this spacing, a parent container should be created that is 40px width as follows:

<div style="width: 40px">
    <table id="example1"></table>
</div>

Sorting Data

AutoTable sorts on the first column at startup. Custom sorting can be specified by passing extra configuration to the underlying DataTable. For example to sort on the second column, use the following configuration:

overrides: {
    aaSorting: [
        [1, 'desc']
    ]
}

Note By default, the sorting will occur on underlying values. To sort using formatted values, specify sortByFormatted on the columnOptions tag.

Data Editing

AutoTable can be configured to allow edits to the backing array. For example to make Array1 editable, specify editable in the columnOptions.

Note A number of options can be used in conjunction with editable. For example, if dealing with a Boolean type value, an editorType option can be specified. Then a value can be specified for the checked/unchecked options as shown in the following code fragment:

columnOptions: [
    {
        name: 'Array1',
        editable: true,
        editorType: insight.components.Table.EditorType.CHECKBOX,
        uncheckedValue: 'on',
        checkedValue: 'off'
    }
]

Row Addition and Deletion

Where edits are permitted, it is also possible to allow the addition and removal of rows in the table (and therefore the addition and deletion of elements in the underlying arrays). To enable row addition and deletion within an AutoTable specify addRemoveRow: true in the options to create the table. You will also need at least one editable column defined in the columnOptions. This will cause add and delete row buttons to be displayed.

Clicking on an index value in a row will select the row and activate the delete button. A subsequent click on the Delete button will remove the row from the array.

Clicking the Add button will display a form allowing selection of a set of index values for the new row in the array.

You can also specify add row behavior that will auto increment a single, integer index set. To do this specify addRemoveRow: 'addrow-autoinc', for example:

insight.getView()
    .withFirstScenario()
    .bindAutoTable({
        tableId: 'table-1',
        columnOptions: [
            {name: 'ArrayEntity', editable: true},
            {name: 'AnotherArray', editable: true}
        ],
        addRemoveRow: 'addrow-autoinc'
    })
    .start();

If the array entities ArrayEntity and AnotherArray are both indexed by a single, integer set then the add row button in the table will create a new set value which will by the current maximum value + 1.

Note The scenario data is not updated until at least one non-index value is populated for the new row.

The row addition and deletion behavior can be customized, and in addition event notification of adding and removing rows is also available. Refer to the JavaScript API reference for more information.
