Accessing Set Entities

Set entities are treated as one-dimensional arrays, each element being an object with a value and a label property.

You can access the elements of a set with the square bracket [ ] notation. Set entities are simple arrays and it is very common to iterate over them.

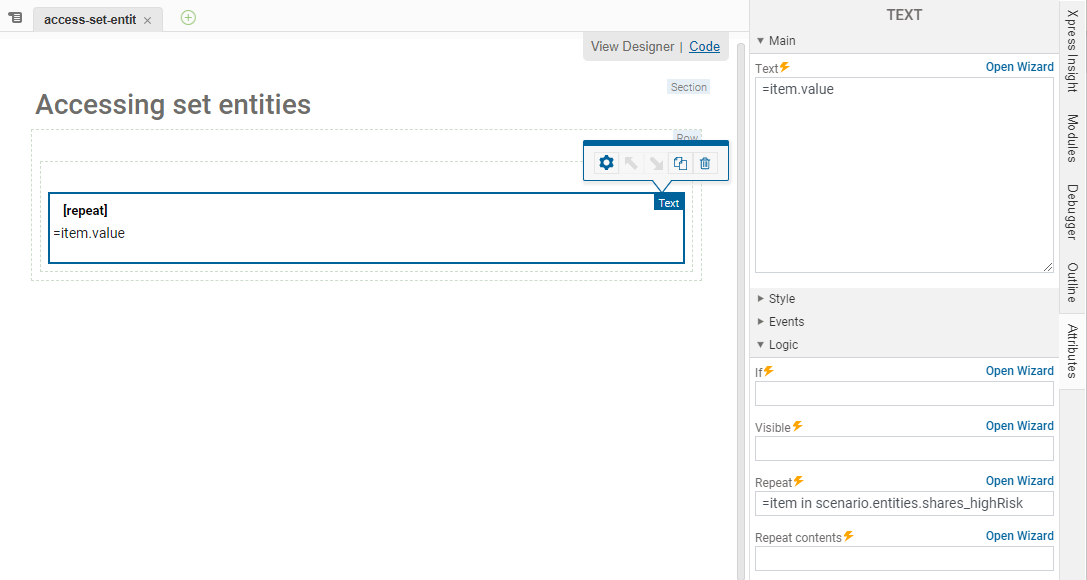

View Designer

Code editor

<vdl version="4.7">
    <vdl-page>
        <vdl-section heading="Accessing set entities">
            <vdl-row>
                <vdl-column vdl-repeat="=item in scenario.entities.RISK">
                  <span vdl-text="=item.value"></span>
                </vdl-column>
            </vdl-row>
        </vdl-section>
    </vdl-page>
</vdl>

renders as:

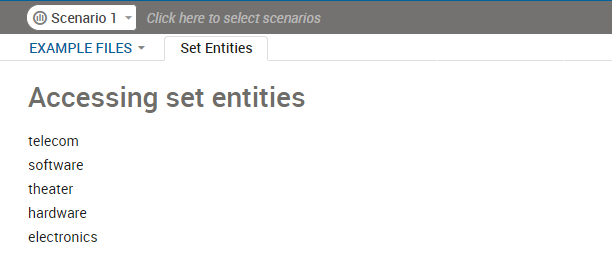

Rendered View of a Set Entity

For more on loops and the <vdl-repeat> element, see Using Loops with Arrays and Sets.

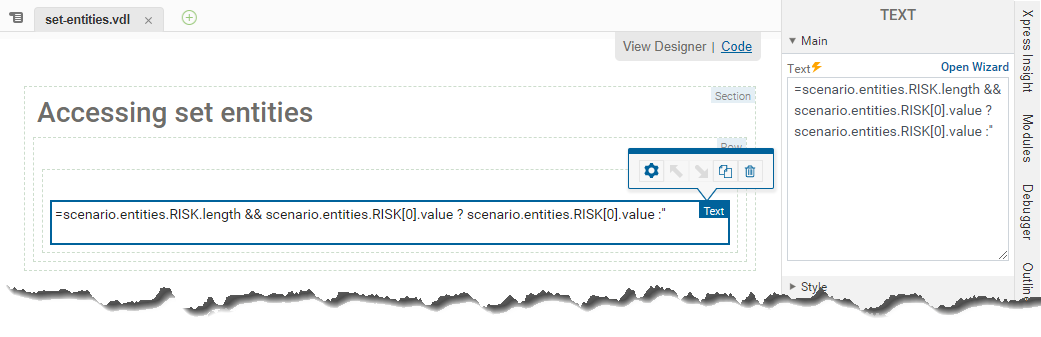

If you wish to extract individual elements from a set entity, you need to protect the statement with a guard:

<span vdl-text="=scenario.entities.RISK.length && scenario.entities.RISK[0].value ?
scenario.entities.RISK[0].value :
'' ">
</span>

By default, Set data is sorted based on the data type. You can provide custom sorting and/or change the sorting direction to descending, for more, see VDL Set Sorting.
