Creating Grid Layouts
Use the Row element (vdl-row tag) within a section to create a grid layout.
Rows can contain columns, which function as cells in the grid.
Code editor
<vdl version="4.7">
<vdl-page>
<vdl-section>
<vdl-row>
<vdl-column size="2">Top left.</vdl-column>
<vdl-column size="2">Top right.</vdl-column>
</vdl-row>
<vdl-row>
<vdl-column size="2">Bottom left.</vdl-column>
<vdl-column size="2">Bottom right.</vdl-column>
</vdl-row>
</vdl-section>
</vdl-page>
</vdl>

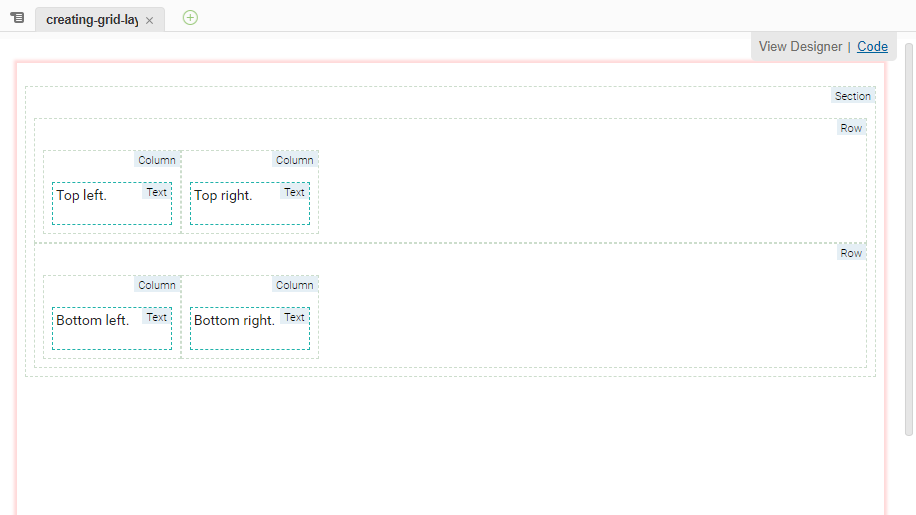

View Designer
Grid Layout in the View Designer

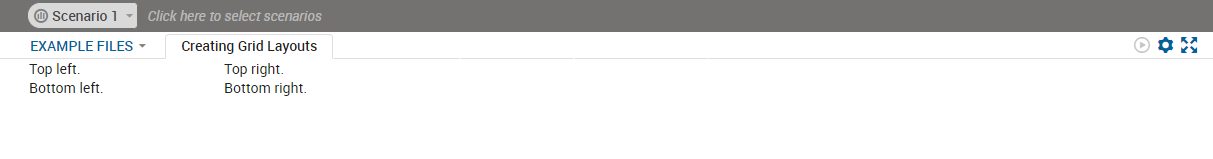

When published, this file renders as:
Rendered Grid Layout
Implicit vdl-column elements and vdl-row elements
All sections use a grid layout internally.
- Content not contained within a Column (vdl-column) element is wrapped in a single implicitly-sized Column (vdl-column element).
- Any Columns (vdl-column elements) that are not contained within a Row (vdl-row element) are wrapped in single Row (vdl-row elements).
The following example has content both within and outside of rows and columns.
<vdl version="4.7">
<vdl-section>This content is inside a section.
<vdl-row>This content is inside a row.
<vdl-column size="3">This content is inside a row and a column.</vdl-column>
</vdl-row>
<vdl-column size="2">This content is inside a column.</vdl-column>
More content within a section>
<vdl-section>
</vdl-page>
To conform to the grid layout, implicit
vdl-column and
vdl-row elements are added to the VDL code prior to rendering the HTML:
<vdl version="4.7">
<vdl-section>
<vdl-row>This content is inside a section.</vdl-row>
<vdl-row>
<vdl-column>This content is inside a row.</vdl-column>
<vdl-column size="3">This content is inside a row and a column.</vdl-column>
</vdl-row>
<vdl-column size="2">This content is inside a column.</vdl-column>
<vdl-column>More content within a section.</vdl-column>
<vdl-section>
</vdl-page>
