Structure of the Insight Python Application File Template
The template file presents the best practice when creating an Insight Python file. The structure of the
Insight Python application file complies with Python program conventions.
It can be conceptually divided into three functional sections:
- Initially, you import your libraries and declare your data.
- Define the Load function that initializes all inputs.
- Define the Run function that initializes all results, and anything marked as requiring 'update after execution'.
These Python Load and Run functions call the FICO® Xpress Insight execution modes, for more see Understanding Execution Modes.
Template File
The first lines in the file enable you to import the different packages required by the module, as well as any others you need for your application.
import pandas as pd import xpress as xp import xpressinsight as xi import sys
|
Note The
Insight Python module uses the pandas library and reflects that data naming convention. The documentation for the pandas library can be accessed at
https://pandas.pydata.org/.
|
The next section of code declares a Python class definition under the application name. Because this is a Python application, all code in this file follows that paradigm.
@xi.AppConfig(name="Quick Start with Python", version=xi.AppVersion(1, 0, 0))
class InsightApp(xi.AppBase):
# Use type hints to declare the data model entities for the scenario.
# Inputs need to be initialized in the load mode(s).
# Entities are inputs if the manage attribute is xi.Manage.INPUT. This is the default, i.e., it can be omitted.
MyInteger: xi.Scalar(dtype=xi.integer, alias='My Integer', manage=xi.Manage.INPUT)
Indices: xi.Index(dtype=xi.integer, alias='Array Indices')
Input: xi.Series(index=['Indices'], dtype=xi.integer, alias='Input Array')
# Results need to be initialized in the run mode(s).
# Entities are results if the manage attribute is xi.Manage.RESULT.
Result: xi.Series(index=['Indices'], dtype=xi.real, manage=xi.Manage.RESULT, alias='Result Array') There are a few things to note about the preceding code. For example:
- The name declared in this line of code: @xi.AppConfig(name="Quick Start with Python", version=xi.AppVersion(1, 0, 0)) is utilized as the application name on the tile displayed in the Xpress Insight HOME page.

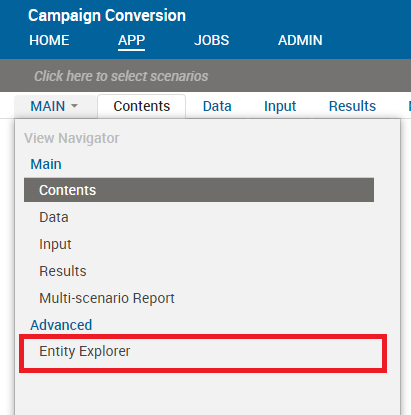

- Also, in the example below, the scalar value assigned to the variable MyInteger is visible in the Entity Explorer next to the alias label.
MyInteger: xi.Scalar(dtype=xi.integer, alias='My Integer', manage=xi.Manage.INPUT)
In this example applications, entities that will be used in the application are declared at the top of the class declaration. You must:
- Define the data value type (dtype) for each entity.
- Define an index for each Series and DataFrame—For example, the input series references the indicies element in the line above.
Indices: xi.Index(dtype=xi.integer, alias='Array Indices') Input: xi.Series(index=['Indices'], dtype=xi.integer, alias='Input Array')
Every
Insight Python App must have a
LOAD function and a
RUN function defined. These are shown in the template file immediately after the declarations.
@xi.ExecModeLoad(descr="Loads input data.")
def load(self):
# Scenario is being 'loaded' through Xpress Insight.
# Insight automatically populates the parameters with the values from the UI.
# Input entities will be captured and stored in the scenario.
self.Input = pd.read_csv('input.csv', index_col=['Indices'], squeeze=True)
self.Indices = self.Input.index
self.MyInteger = self.Indices.size
print("\nLoad mode finished.")
@xi.ExecModeRun(descr="Takes input data and uses it to compute the results.")
def run(self):
# Scenario is being 'run' through Xpress Insight.
# Insight automatically populates the parameters and inputs with the values from the UI.
# Result entities will be captured and stored in the scenario.
print('Scenario:', self.insight.scenario_name)
# Calculate the results data.
self.Result = self.Input * float(self.MyInteger)
print("\nRun mode finished.")
@xi.ExecMode(name="CUSTOM_RUN", descr="Custom run execution mode.", clear_input=False)
def my_custom_run_mode(self):
self.Result = self.Input * (self.MyInteger * 0.5)
print("Custom run mode finished.")
Note that Indices: xi.Index(dtype=xi.integer, alias='Array Indices') will also be loaded as an input, as there is no manage attribute declared.
Load function
When the load function is executed (for example, when Load is selected on the Xpress Insight Scenario pill drop down menu), the entities declared as input data in the Python file (and any entities that are not declared) are loaded as input into the Xpress Insight database. For example, an entity declared in the load function as MyInteger: xi.Scalar(dtype=xi.integer, alias='My Integer', manage=xi.Manage.INPUT) will be loaded, because the last term in the declaration manage=xi.Manage.INPUT explicitly marks it as Insight input data.
Run function
When the run function is executed (for example by selecting
Run on the
Xpress Insight Scenario pill menu, or by clicking a run button in the interface), the entities marked as input are initialized for use, and the code stored in the run function is executed. The results are output to the
RESULTS entities.
Result: xi.Series(index=['Indices'], dtype=xi.real, manage=xi.Manage.RESULT, alias='Result Array')
|
|
Note Advanced users can also create custom run modes.
@xi.ExecMode(name="CUSTOM_RUN", descr="Custom run execution mode.", clear_input=False)
def my_custom_run_mode(self):
self.Result = self.Input * (self.MyInteger * 0.5)
print("Custom run mode finished.")
|
Main function
Finally, the Python program requires the main function.
if __name__ == "__main__":
# When the application is run in test mode (i.e., outside of Xpress Insight),
# first initialize the test environment, then execute the load and run modes.
app = xi.create_app(InsightApp)
sys.exit(app.call_exec_modes(["LOAD", "RUN"]))
