Run Bar

Can be shown/hidden by selecting Run Bar from the View menu or by clicking the hidepanel.png icon on the Run pane.

The Run Bar groups together the following tabs/panes: Output/Input, Stats, Matrix, Solutions, Objective, MIP search, BB tree, User graph, CP stats, and CP search.

The Run Bar can be put into space-saving mode by enabling the Auto hide checkbox: when the mouse leaves the area of the Run Bar and enters the editor, the Run Bar will be hidden almost completely. When the mouse re-enters the Run Bar, it expands to its previous dimensions.

Below are snapshots of the different tabs/panes:

Output/Input

Mosel output Console-style user input:
barrunoutput.png barruninput.png

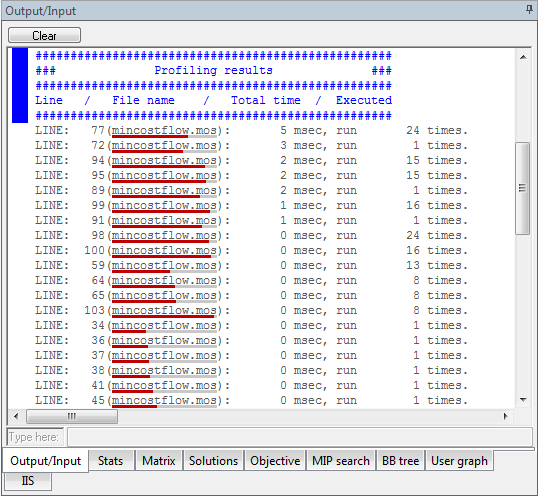

Profiler output:


Debugger output:


Optimizer output when a matrix file is run using the Optimizer Dialog:


Statistics

Optimizer status and statistics:


Matrix

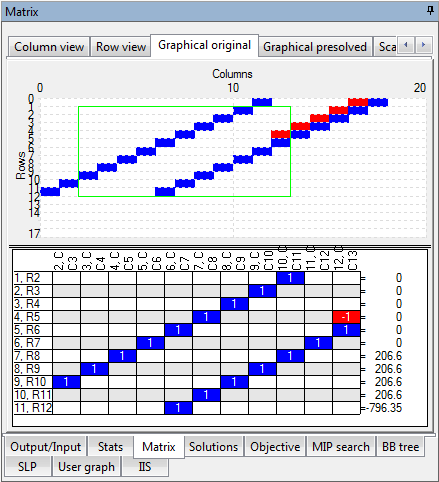

A zoomable view of the matrix:


Solutions

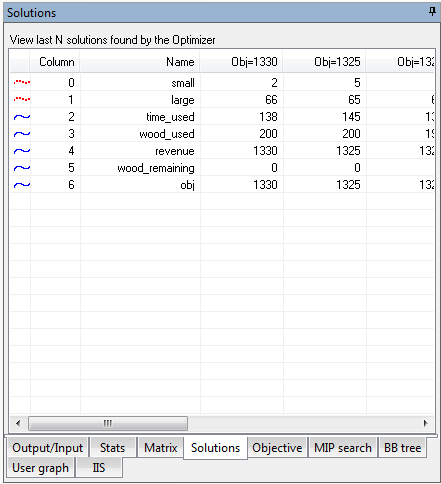

The last N solutions found by the Optimizer:


Objective

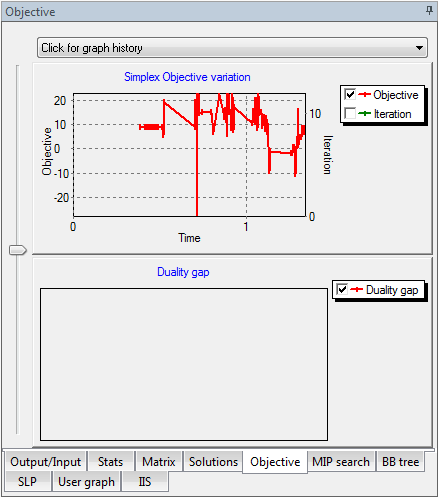

Objective value progress during Simplex or Newton barrier:


MIP search

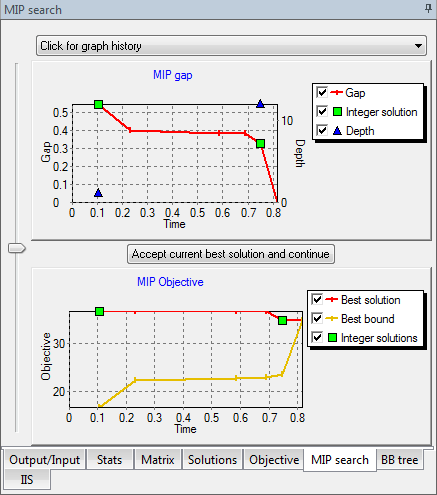

Progress of the global search for integer solutions:


BB tree

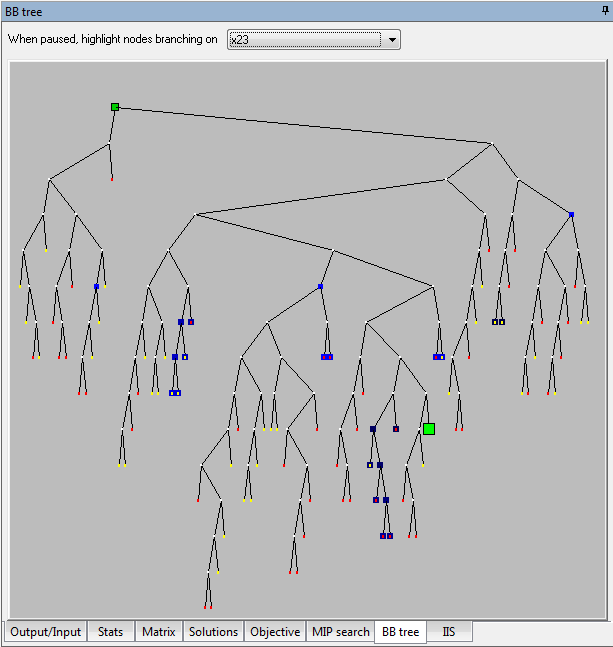

The evolution of the Branch and Bound MIP search:


User graph

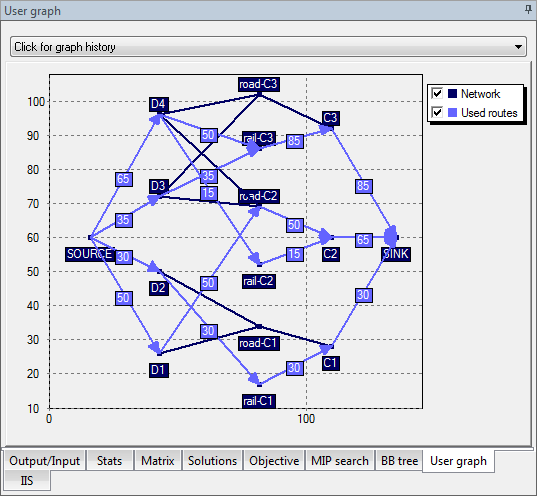

Graph constructed by user during the Mosel run:


CP stats and CP search

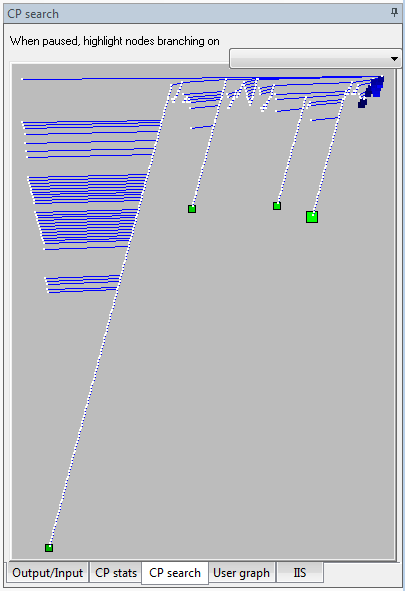

Models using the Xpress-Kalis solver generate display in two additional tabs:

ivekalissearch.png ivekalisstats.png

Parent Topic Xpress-IVE Toolbars
