Creating Tables

Tables are a key tool in using and displaying data, and are built by defining a table or datagrid element and at least one column element.

We can use a table to display columns based on the Shares_fraction and Shares_Return entities:

View Designer
Code editor
<vdl version="5.6">
    <vdl-page>
        <vdl-section heading="Welcome to Portfolio Optimization" heading-level="1">

            <vdl-row>
                <vdl-column heading="Recommended share allocations" heading-level="3">
                    <vdl-table page-mode="paged" page-size="5" column-filter="true" show-filter="true">
                        <vdl-table-column entity="Shares_fraction"></vdl-table-column>
                        <vdl-table-column entity="Shares_Return"></vdl-table-column>
                    </vdl-table>
                </vdl-column>
            </vdl-row>
        </vdl-section>
    </vdl-page>
</vdl>
A similar result could be achieved using <vdl-datagrid> with the following code:
<vdl version="5.6">
    <vdl-page>
        <vdl-section heading="Welcome to Portfolio Optimization" heading-level="1">

            <vdl-row>
                <vdl-column heading="Recommended share allocations" heading-level="3">
																    <vdl-datagrid page-mode="paged" page-size="5" column-filter="true" show-filter="true">
                        <vdl-datagrid-column entity="Shares_fraction"></vdl-datagrid-column>
																								<vdl-datagrid-column entity="Shares_Return"></vdl-datagrid-column>
																				</vdl-datagrid-column>
                </vdl-column>
            </vdl-row>
        </vdl-section>
    </vdl-page>
</vdl>

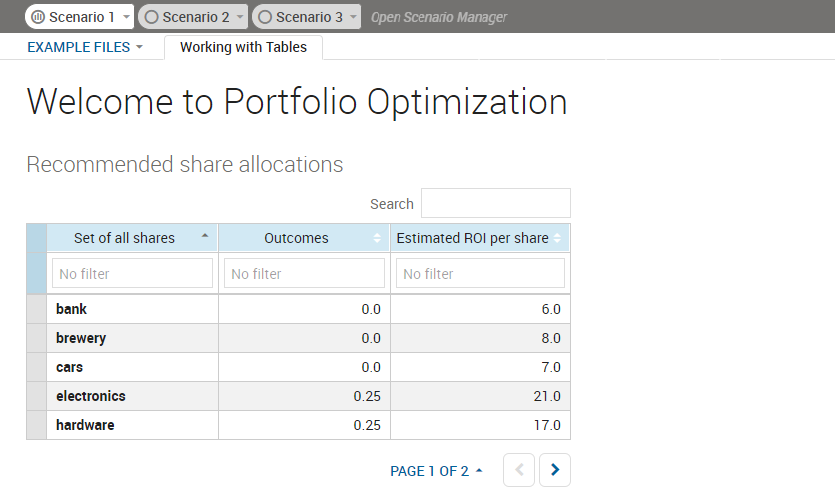

This renders as:
Rendering a two-column Table

A row has been created for each element of the SHARES index set, which indexes both frac and RET.

You can change the column titles by specifying a custom title, either by:

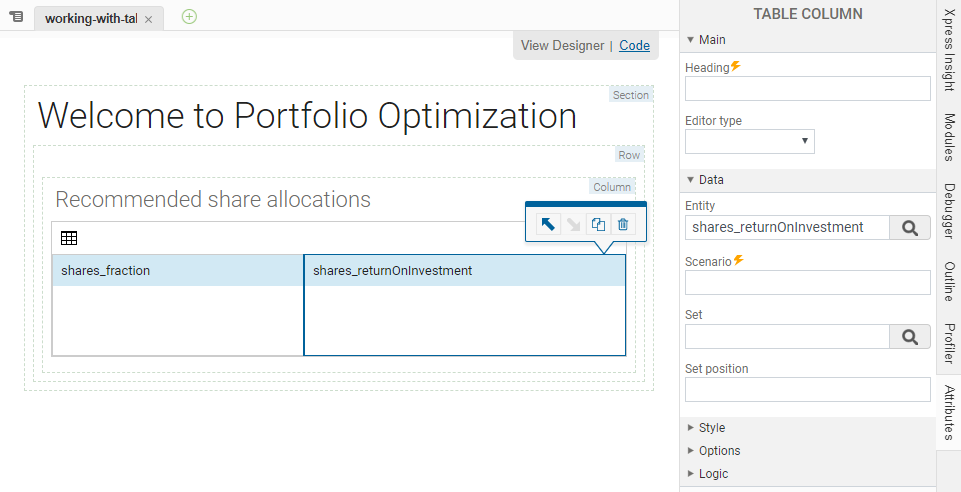

  • selecting the column in the View Designer and editing the Heading attribute.
  • adding a heading text value to the <vdl-table-column> node
<vdl-table-column entity="Shares_fraction" heading="The Shares Fraction Column"></vdl-table-column>.

Otherwise, the columns take their titles from model aliases or, if there are none, the model entity names. To customize any auto-generated index columns, you must provide a set attribute corresponding to the name of the index column to customize—as before, the custom title is provided as the text content of the <vdl-table-column> node.

This table contains two entities, if the index sets of all entities in the table are the same you can add as many as you wish.
