VDL Entity editing

Entity values can be set, updated, and removed using vdl actions. For the latest versions of these examples, visit the FICO VDL Online Reference.

Toggle Boolean Scalar

This example uses a button to trigger the vdl action stored in an action group that toggles the myBool entity value. The action is called from the button by referencing the name of the action group.

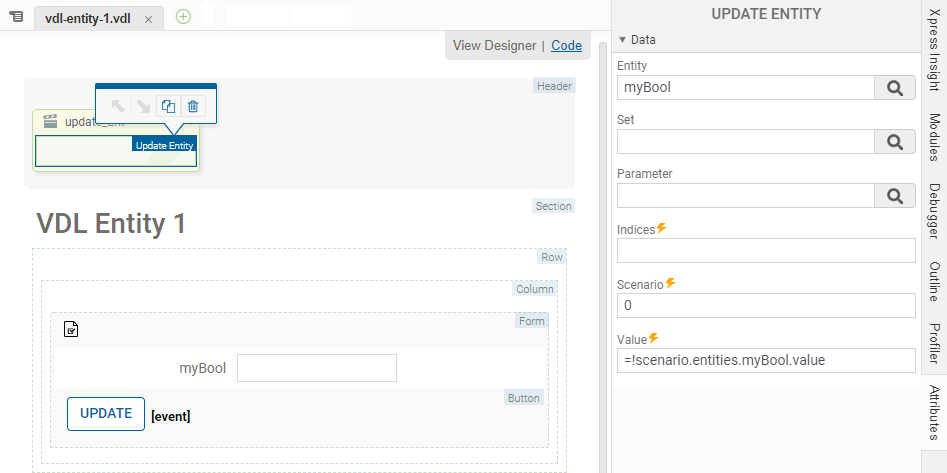

View Designer
Code editor
    <vdl-page>
        <vdl-header draggable="true">
            <vdl-action-group draggable="true" name="update_Ent">
                <vdl-action-update-entity value="=!scenario.entities.myBool.value" entity="myBool"></vdl-action-update-entity>
            </vdl-action-group>
        </vdl-header>
        <vdl-section heading="VDL Entity 1">
            <vdl-row>
                <vdl-column size="12">
                    <vdl-form>
                        <vdl-field entity="myBool"></vdl-field>
                        <vdl-button vdl-event="click:actions.update_Ent" label="Update"></vdl-button>
                    </vdl-form>
                </vdl-column>
            </vdl-row>
        </vdl-section>
    </vdl-page>

Remove Scalar Value

The vdl-action-remove-entity action sets a scalar to its default value. For each data type, these are; INTEGER=0, REAL=0, BOOLEAN=false, and STRING="".

Code editor
    <vdl-page>
        <vdl-header draggable="true">
            <vdl-action-group draggable="true" name="remove_Ent">
                <vdl-action-remove-entity value="=!scenario.entities.myBool.value" entity="myBool"></vdl-action-remove-entity>
            </vdl-action-group>
        </vdl-header>
        <vdl-section heading="VDL Entity 2">
            <vdl-row>
                <vdl-column size="12">
                    <vdl-form>
                        <vdl-field entity="myBool"></vdl-field>
                        <vdl-button vdl-event="click:actions.remove_Ent" label="Remove"></vdl-button>
                    </vdl-form>
                </vdl-column>
            </vdl-row>
        </vdl-section>
    </vdl-page>

Update Entity Array with Indices

Update a value in a multi-dimensional array by specifying the array, indices, and value. The vdl-action-update-entity example here increments the value for New York, January in the array FactorySupply.

Code editor
    <vdl-page>
        <vdl-header draggable="true">
            <vdl-action-group draggable="true" name="update_Ent">
                <vdl-action-update-entity
                entity="FactorySupply"
                value="=scenario.entities.FactorySupply(['New York', 'January']).value + 1"
                scenario="0"
                indices="=['New York', 'January']">
                </vdl-action-update-entity>
            </vdl-action-group>
        </vdl-header>
        <vdl-section heading="VDL Entity 3">
            <vdl-row>
                <vdl-column size="12">
                    <vdl-form>
                        <vdl-field entity="FactorySupply" indices="New York,January"></vdl-field>
                        <vdl-button vdl-event="click:actions.update_Ent" label="Update"></vdl-button>
                    </vdl-form>
                </vdl-column>
            </vdl-row>
        </vdl-section>
    </vdl-page>

Remove Array Value

The vdl-remove-entity option can be used with an array to remove the value at a specified position in the array.

Code editor
    <vdl-page>
        <vdl-header draggable="true">
            <vdl-action-group draggable="true" name="remove_Ent">
                <vdl-action-remove-entity
                entity="FactorySupply"
                value="=scenario.entities.FactorySupply(['New York', 'January']).value + 1"
                scenario="0"
                indices="=['New York', 'January']">
                </vdl-action-remove-entity>
            </vdl-action-group>
        </vdl-header>
        <vdl-section heading="VDL Entity 4">
            <vdl-row>
                <vdl-column size="12">
                    <vdl-form>
                        <vdl-field entity="FactorySupply" indices="New York,January"></vdl-field>
                        <vdl-button vdl-event="click:actions.remove_Ent" label="Remove"></vdl-button>
                    </vdl-form>
                </vdl-column>
            </vdl-row>
        </vdl-section>
    </vdl-page>

Update Parameter

The following example uses a vdl action attached to a Button to update the parameter MyParam (displayed in a vdl field) with a randomly generated number.

Code editor
<vdl-action-group name="demo3">
    <vdl-action-update-entity parameter="MyParam" value="=Math.random() + ''" scenario="0" ></vdl-action-update-entity>
</vdl-action-group>
<vdl-form>
    <vdl-field parameter="MyParam" ></vdl-field>
</vdl-form>
<button class="btn-primary" vdl-event="click:actions.demo3">Demo3</button>

Remove Param Value

The vdl-remove-entity action can be used to delete a parameter.

Code editor
<vdl-action-group name="demo4">
    <vdl-action-remove-entity parameter="MyParam" scenario="0"></vdl-action-remove-entity>
</vdl-action-group>
<vdl-form>
    <vdl-field parameter="MyParam"></vdl-field>
</vdl-form>
<button class="btn-primary" vdl-event="click:actions.demo4">Remove parameter MyParam</button>

Remove Set Value

The vdl remove entity action can be used to delete a set of data.

Code editor
<vdl-action-group name="demo4">
 <vdl-action-remove-entity set="Factories" indices="='New York'" scenario="0"></vdl-action-remove-entity>
 </vdl-action-group>
 <vdl-form>
 <i vdl-repeat="=item in scenario.entities.Factories" vdl-text="=item.label + ' '"></i>
 </vdl-form>
 <button class="btn-primary" vdl-event="click:actions.demo4">Remove New York factory</button>
