Managing Users with LDAP

By default, Xpress Insight authenticates users against credentials stored within the Xpress Insight database. User's passwords are persisted in a one-way encrypted form using SHA-256 hashing (1024 iterations and a random 8-byte random salt value).
To start Managing Users with LDAP, you must log in as an administrator.
  1. Log in to Xpress Insight, then click the ADMIN link at the top of the page.
  2. Log in to the Admin interface and click the LDAP link.

The LDAP Configuration page contains three pages:
  • LDAP Configuration—manage integration between Xpress Insight and LDAP.
  • Group Mappings—define which LDAP group membership rights are required to enable access to each Insight Authority Group.
  • App Mappings—define which LDAP group membership rights are required to enable access to your Insight apps.
Covered Topics
  • LDAP Configuration

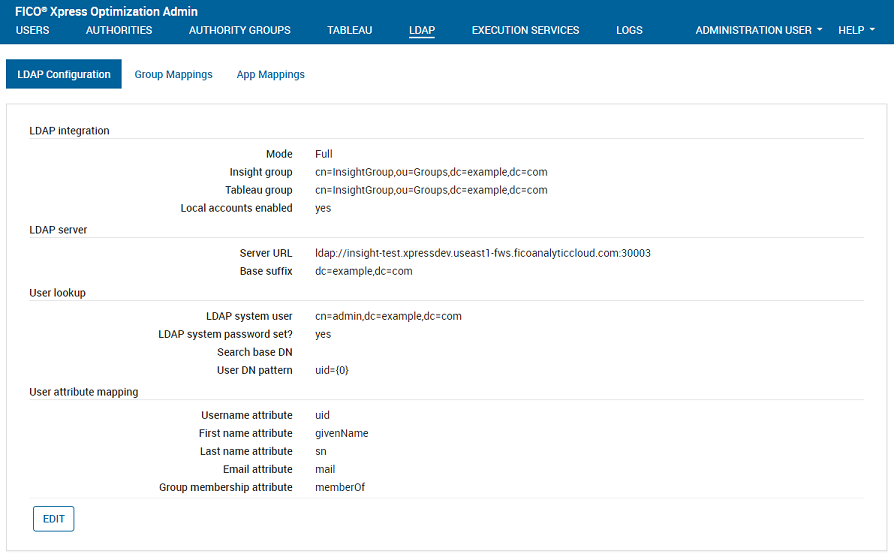

    Through the LDAP configuration page of the administration web interface, the integration between Xpress Insight and LDAP can be enabled and configured. Open the LDAP Configuration page by selecting the LDAP tab and clicking Edit.
  • Group Mappings
    The Group Mappings page maps an LDAP group to an Insight Authority Group.
  • App Mappings
    User can be granted access to Insight apps based on an LDAP group.
Parent Topic Authenticating Users with Active Directory or LDAP
