Using Expressions

Expressions are statements used to insert dynamic content into a View or programmatically control layout and data flow.
They are specified as component attributes and are either added:
  • to the vdl-text tag in the code editor.
  • through the Text field in the View Designer.
Code editor
<span vdl-text="=scenario.entities.TotalReturn.value"></span>
There was a simple expression in the earlier section VDL Basics - a Recap which can also be seen in the View Designer:

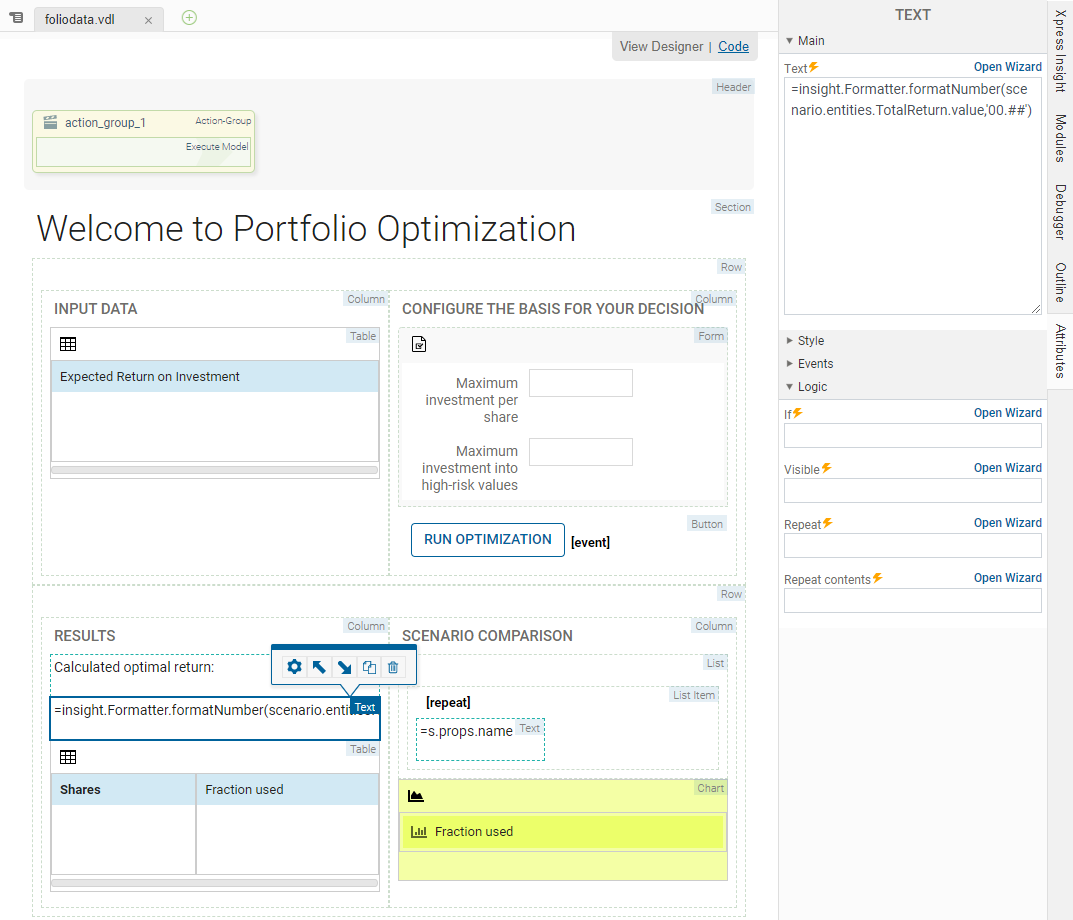

Entering expressions using the View Designer

An expression is denoted by an equals sign = at the start of an attribute value. Everything after the equals sign is evaluated and re-evaluated when any referenced entities change.

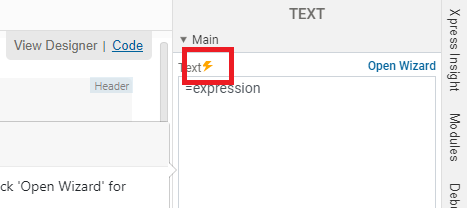

Note Attributes that can accept expressions are identified by the lightning symbol in the Attributes panel.

Not all elements accept expressions. The VDL Reference enumerates all of the available logic attributes, and attributes that can be added. For more, see VDL 4.7 Reference.

Covered Topics
  • VDL Expression Language Syntax
    There are several basic rules to follow when using expression language.
  • View Global Scope
    Several objects are implicitly within scope in views and available to expressions.
  • Accessing Entities and Other Model Data
    When you reference a scalar entity or set/array element from the model, an object with two properties is returned.
  • Using Dynamic Variables
    Dynamic variables allow you to define calculations or operations once and reference them in multiple expressions.
  • Using Loops with Arrays and Sets
    VDL provides a couple of methods of repeating.
  • Working with Conditional VDL Attributes
    You can implement conditional logic by combining expressions with a conditional VDL attribute. This is generally used to control whether content is included in the page or not, whether it is hidden, or how it is styled.
  • Using VDL Include
    When an app written with VDL becomes large, it is common to require the same functionality in several independent views. There is also a case for creating custom extensions to handle certain features or layouts across multiple views. Both requirements are satisfied with the element.
  • Advanced Expressions
    In addition to accessing the available global objects, you can make use of any standard JavaScript syntax and globals provided by the Xpress Insight API, such as insight and jquery.
  • Validating User Input
    Even without any VDL modifications, as a user types into or selects a new value from a form field it is automatically validated.
  • Adding Tooltips
    You can also add informatory tooltips to elements in a View through the code editor. Place them inside elements and they are shown when a user hovers over that element.
Parent Topic Using the View Designer and VDL to Create Custom Views
