Evaluate Xpress

Topics covered in this section:

The following five typical evaluator scenarios are defined depending on the choice of products to evaluate (see question 2):

  • Scenario 1: Develop the model in Mosel for any kind of problem and deploy in any programming language or as an Xpress Insight application.

    Tool for model development:  Mosel
    Type of problem: Any
    Tool for model deployment: (a) Xpress Insight
    (b) Mosel Libraries (C++/C, Java, VBA, .NET)

  • Scenario 2: Implement and deploy the model in a programming language using the object-oriented API for Xpress solvers.

    Tool for model development:  Object-oriented solver API
    Type of problem: LP, MIP, QP, MIQP, NLP, MNLP
    Tool for model deployment: Object-oriented solver API (C++, Java, .NET)

  • Scenario 3: Use your custom application to develop the model and then call the Xpress Optimizer libraries. Available for problems that can be solved with Xpress Optimizer.

    Tool for model development:  Custom application that calls optimizer libraries.
    Type of problem: LP, MIP, QP, MIQP
    Tool for model deployment: Optimizer libraries (C++/C, Java, .NET, Python, R)

  • Scenario 4: Run a matrix that is readily available in LP or MPS format. Such a model may be executed through Xpress Workbench, console commands, or applications that call Xpress Optimizer library functions.
  • Scenario 5: Use Xpress Insight to view the app demos and examples provided with the Xpress installation.

Each scenario defines a sequence of specific evaluation steps.

Evaluation steps for Scenario 1

Tool for model development:  Mosel
Type of problem: Any
Tool for model deployment: (a) Xpress Insight
(b) Mosel Libraries (C++/C, Java, VBA, .NET)

This scenario uses examples from the ``Getting Started with Xpress'' document that can be found in directory xpressmp\examples\getting_started\Mosel (where xpressmp is the installation directory of Xpress).

Launch Xpress Workbench

Xpress Workbench is the visual development environment for Windows. To run Xpress Workbench, double click on the Xpress Workbench icon Eval/odicon.png on your desktop, or select FICO » Xpress » Xpress Workbench from the Windows sart menu. Otherwise, you may also start up Workbench by typing xpworkbench in a DOS window or by double clicking on a model file (file with extension .mos).

Open Mosel model in Xpress Workbench

Locate the directory containing the evaluation examples in your Xpress installation (xpressmp\examples\getting_started\Mosel) and open the file foliolp.mos by double clicking on its name in the file browser. Alternatively, if you have already started Xpress Workbench select Open a file in the Xpress Workbench entry screen and browse to select the file foliolp.mos. The model ``Portfolio optimization with LP'' will open in the central pane (the Workbench editor). This model seeks an optimal investment portfolio using ten securities (shares), subject to some risk and regional constraints. The comments in the code (text following the exclamation mark `!') describe the meaning of the different statements. Note that RET is an array of real values representing the expected return of the shares. The decision variables in the model are given by the array frac of type mpvar. The procedure maximize calls Xpress Optimizer to maximize the objective function. The code also contains statements to print the optimal solution and solution values.

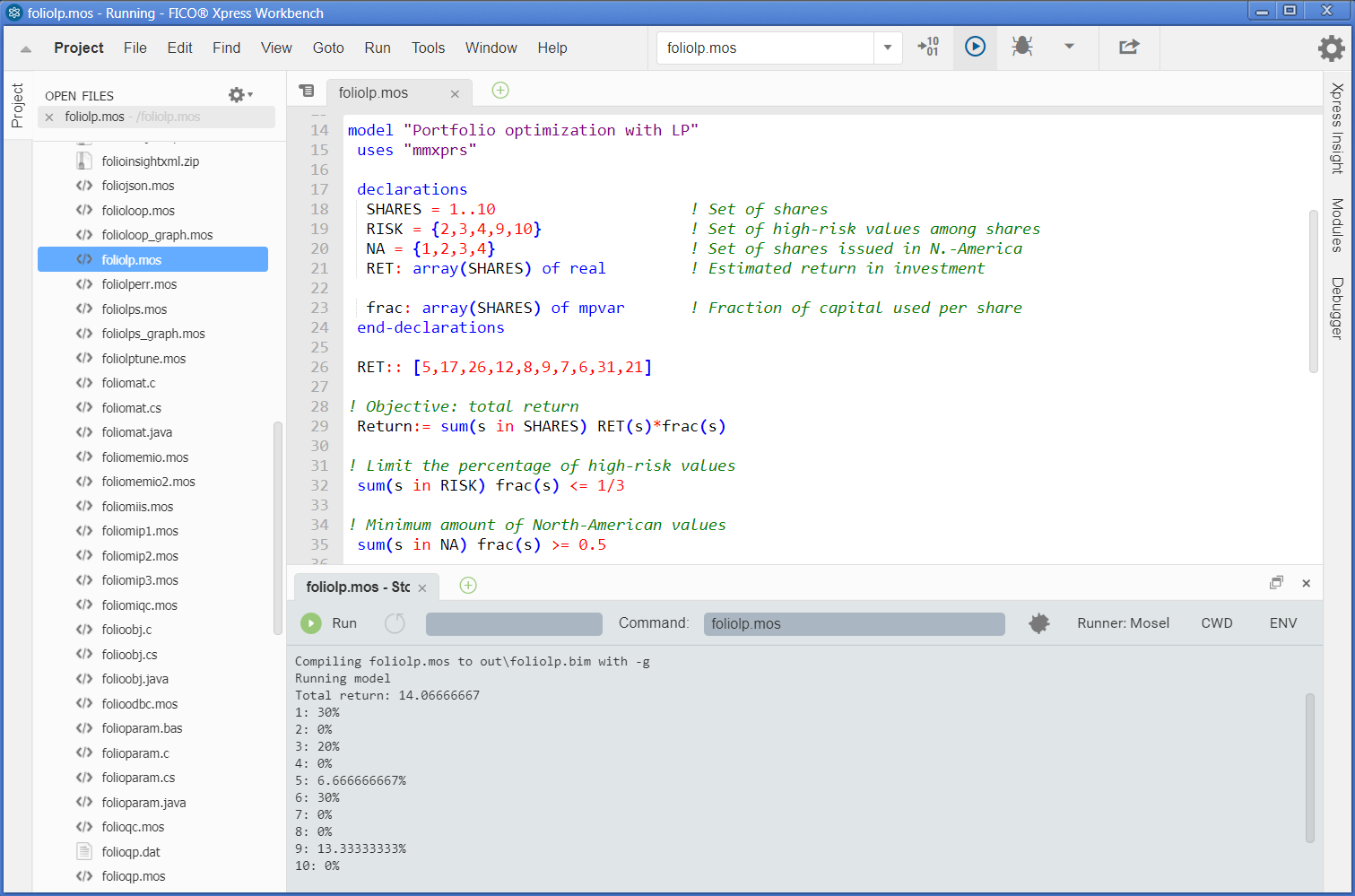

Eval/gswb.png

Figure 1: Workbench window after a model run

Further information

  • For more information on the model formulation for this example see: ``Getting Started with Xpress'', Chapter 2: `Building models'.
  • For more information on the Mosel representation of the model for this example see: ``Getting Started with Xpress'', 3.2 `LP model'.
  • For more information on Mosel and other Mosel examples see ``Xpress Mosel User Guide'', Chapter 1: `Getting started with Mosel', 1.1 `Entering a model'.
  • New users of Mosel may also wish to take a look at the Appendix `Good modeling practice with Mosel' of the ``Xpress Mosel User Guide''.

Compile and run the Mosel model

To execute a Mosel model select menu Run or click on the green 'Run' icon Eval/butrun.png next to the dropdown file selection box at the top (make sure the desired filename displays in the box). The output log and the status of the model execution are shown at the bottom of the Xpress Workbench screen (see Figure Workbench window after a model run), and it should read Mosel exited with code 0 and Process exited with code: 0 at the end of the display. If Mosel detects any errors during compilation or model execution these will equally be reported in this logging window.

While developing a model you may wish to just compile a model without running it with a data instance, e.g. to check for syntax errors. Select menu entry Run » Build to compile the selected model. Upon successful compilation you will see the message Created foliolp.bim in the logging window at the bottom and the compiled file appears in the workspace file listing, otherwise the log reports any errors that have occurred.

Now select the Debug icon Eval/butdebug.png to run the model once more and open the Debugger pane at the right. The model execution will be suspended just before its termination, allowing you to inspect the values of the model objects that have been populated by the model execution (see Figure Workbench window with debugger display). In debug mode you can also set breakpoints or execute the Mosel model step-by-step to analyse its behaviour.

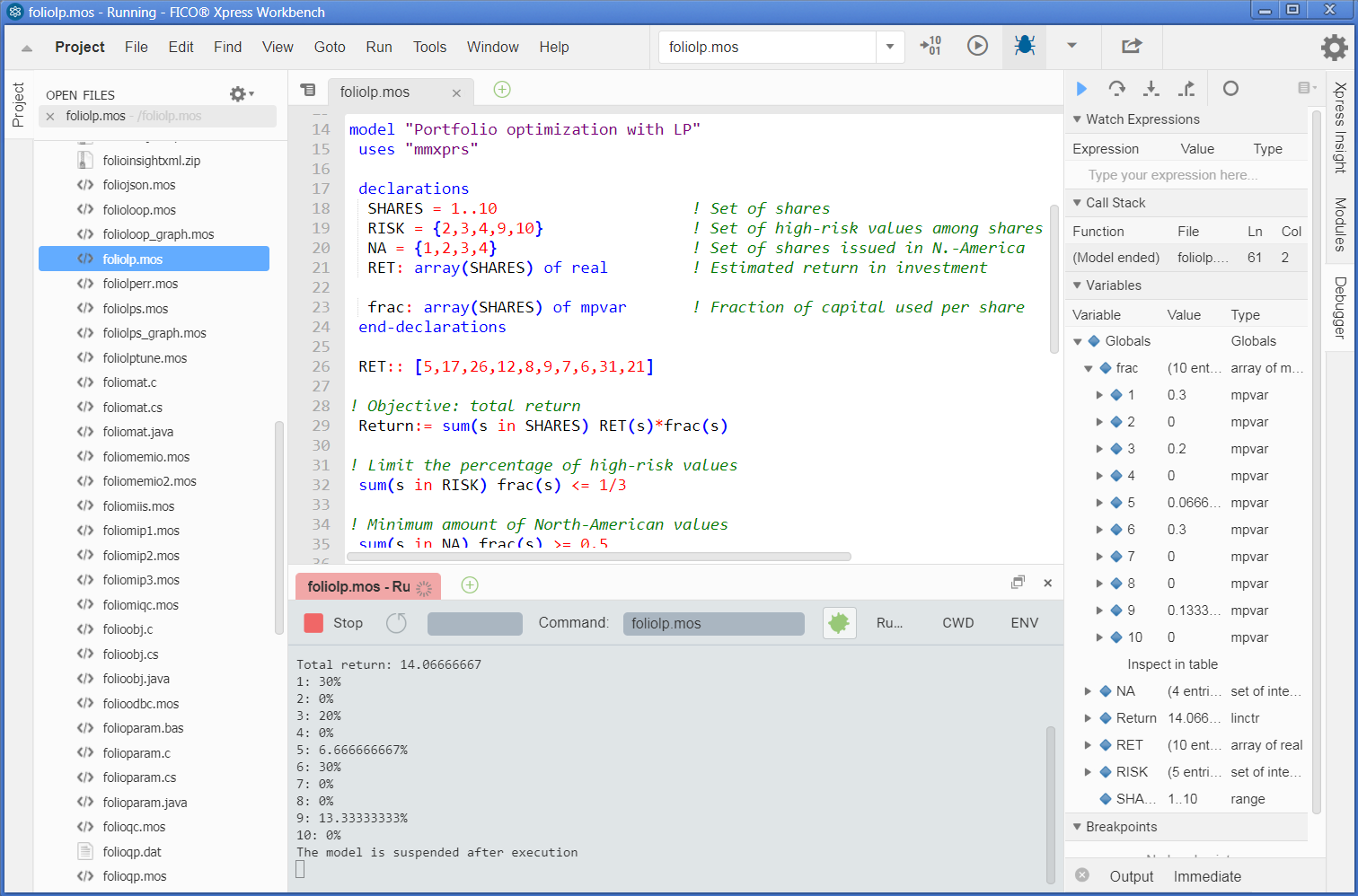

Eval/gswbdbg.png

Figure 2: Workbench window with debugger display

Further information

String indices: The model data and solution are more easily understandable when using string indices. Open and run model foliolps.mos. Explore the model output and the entities in the debugger display.

Further information

  • For more information on running the Mosel model for this example see: ``Getting Started with Xpress'', 3.4. `Solving and viewing the solution'.
  • For more information on string indices for this example see: ``Getting Started with Xpress'', 3.4.1. `String indices', and also ``Xpress Mosel User Guide'', 2.1.3. `The burglar problem revisited'.

Work with data in Mosel

In Mosel models you may work with a large variety of data sources, ranging from simple text files and other file formats such as databases to data exchanged in memory between a Mosel model and a host application or between several concurrent Mosel models. We show here the most frequent cases, namely text files, spreadsheets, and database access via ODBC.

Text files

Open and run model foliodata.mos. Note that this model has a parameters block and an initializations from block. The parameters include the data input file, output file, and other model constants. Parameters can be reset at run time, and they are particularly important when a model is deployed within a business application. The initializations from block reads data from the file folio.dat. This file has a Mosel-specific format that can be seen by opening it in Xpress Workbench by selecting menu File » Open... or double click on the filename in the directory contents listing to the left of the main editor window. The index sets and data arrays in the model are created dynamically based on the data in the input file. Finally this model directs the solution output to an external free-format file result.dat by calling the procedures fopen and fclose.

Further information

For more information on working with data and using parameters in Mosel see: ``Getting Started with Xpress'', Chapter 4: `Working with data'.

Spreadsheets and databases

Open and run model folioexcel.mos. The initializations from block in this program reads data from an MS Excel spreadsheet. The model is accompanied by data in the file folio.xls. Note that this example changes the sets RISK and NA into arrays of Booleans to receive the data from the file. The initializations to block outputs the problem results back to the spreadsheet. If the Excel file is open when writing to it the output data does not get saved, letting you choose whether to keep the results or not. Repeated model executions will overwrite previous output in the target range.

A second very similar model, folioodbc.mos, reads data from an ODBC data source (e.g., the MS Access database folio.mdb) and outputs the problem results back to the database. The prefix to the filename in the initializations blocks now is mmodbc.odbc, corresponding to the type of data we work with; all else is the same as in the Excel model. The ODBC database access facility can also be employed with MS Excel spreadsheets. However, some restrictions apply and we recommend to use the Excel-specific data access as shown in the model folioexcel.mos.
Warning: In order to run this example, the ODBC driver for the corresponding data source must be present.

As an alternative to the Excel-specific access to spreadsheets shown in the example file folioexcel.mos, Mosel also provides generic interfaces to XLS, XLSX, and CSV format files that are usable including on non-Windows platforms. The model file foliosheet.mos uses the generic spreadsheet interface to access data in the file folio.xls (with this interface, the output file needs to be closed when writing to it from Mosel). And the example foliocsv.mos works with CSV format data held in the file folio.csv.

Further information

Mosel MIP and quadratic models

Open and run the following Mosel models:

foliomip1.mos: This model introduces the array of binary variables buy to impose a constraint limiting the number of different shares taken into the portfolio.

foliomip2.mos: This model redefines the array of variables frac to be semi-continuous, so that at least a certain minimum amount of the budget is spent on each share that is bought.

folioqp.mos: This model uses a quadratic formulation to minimize the portfolio variance subject to achieving a target expected return. The Mosel program solves the problem twice, where the second run imposes a limit on the number of shares taken into the portfolio.

For each model, explore the solution and information displayed in the Run Bar tabs.

Further information

Other problem types: Constraint Programming, Nonlinear Programming

All models we have seen so far use Xpress Optimizer for problem solving (chosen with the statement uses "mmxprs" at the begin of the model). If we wish to use a different solver, we need to indicate the name of the corresponding solver module.

Open the model assign.mos: this model implements and solves an assignment problem with Xpress Kalis, that is, using Constraint Programming (CP) techniques. For given sets of workers and machines the problem is to assign exactly one worker to every machine, maximizing the total productivity. The productivity of a worker depends on the machine he is assigned to.

You may observe several differences to the models we have seen previously:
– The solver choice statement now is uses "kalis".
– The CP decision variables are of the type cpvar; their domain (=admissible values) can be set with the procedure setdomain.
– CP models may have linear constraints (as in the `Total productivity' constraint), however our model also uses other types of constraint relations, so-called `global constraints'. The element constraint formulates a discrete function in one variable, and the all_different relation states that all variables in the constraint need to take a different value.
– The CP problem is solved with tree search methods. Instead of using the default search strategies, it is usually preferable to choose a more problem-specific strategy (using procedure cp_set_branching).
– The function cp_maximize is used to invoke the optimization.
All else (general structure, declarations, access to data, output printing) remains unchanged from what we have seen so far.

When running this model with Workbench the model output appears in the Output pane at the bottom of the workspace as with Mathematical optimization problems and in debug mode the model entity display in the Debugger tab is populated.

Other solver types available for Mosel include Xpress NonLinear for solving Nonlinear Programming problems (module 'mmxnlp'), and the module 'mmnl' gives access to the QCQP solver (for quadratically constrained problems) within Xpress Optimizer. Each solver module comes with problem-type specific functionality (such as variable and constraint types)—please see the corresponding manuals.

Further information

  • Xpress Kalis provides access to the functionality of the Constraint Programming solver Kalis from within the Mosel environment or through the Kalis library APIs. For more information about Xpress Kalis see the documents Xpress Kalis Mosel User Guide, Xpress Kalis Mosel Reference Manual, and Xpress Kalis Libraries User Guide.
  • Xpress NonLinear and Xpress Global provide access to a set of solvers for Non-Linear and Mixed Integer Non-Linear Programming. Xpress Global provides a branch-and-cut based algorithm for solving nonlinear and mixed-integer nonlinear problems to global optimality. Xpress NonLinear automatically selects a solver among the installed solvers of the Xpress suite (Simplex, Barrier, SLP, or Knitro) depending on the detected problem type. For more information about Xpress see the chapter mmxnlp of the ``Xpress Mosel Language Reference Manual'', the Xpress NonLinear Manual and the Xpress Global Reference Manual.

Deploying Mosel models to Xpress Insight

Xpress Insight has its own installer that needs to be executed in addition to the standard installation of the Xpress suite. Please see the Xpress Insight quick installation guide for details on the installation process.

Among the examples in the examples/getting_started/Mosel subdirectory of the Xpress installation you will find the two Insight app archives folioinsight.zip and folioinsightxml.zip. Both archives include a slightly edited version of the Mosel model file foliodata.mos with the required input datafile, the second archive adds an XML configuration file and VDL view definitions for the Xpress Insight GUI.

The Evaluation Scenario 5 in Section Evaluation steps for Scenario 5 shows how to work with Xpress Insight.

Publishing Insight apps from Xpress Workbench

Now let us see how to re-generate the readily provided app archives with Workbench. Locate the archive folioinsightxml.zip among the examples in the examples/getting_started/Mosel subdirectory of the Xpress installation and unzip it into a new directory, say folioapp. Start up Workbench with the option Open a project (or if Workbench is already open use the menu Project » Open Project) and select the directory folioapp as the project location. Explore the contents of the app archive by opening the project source files (.mos, .xml, .vdl).

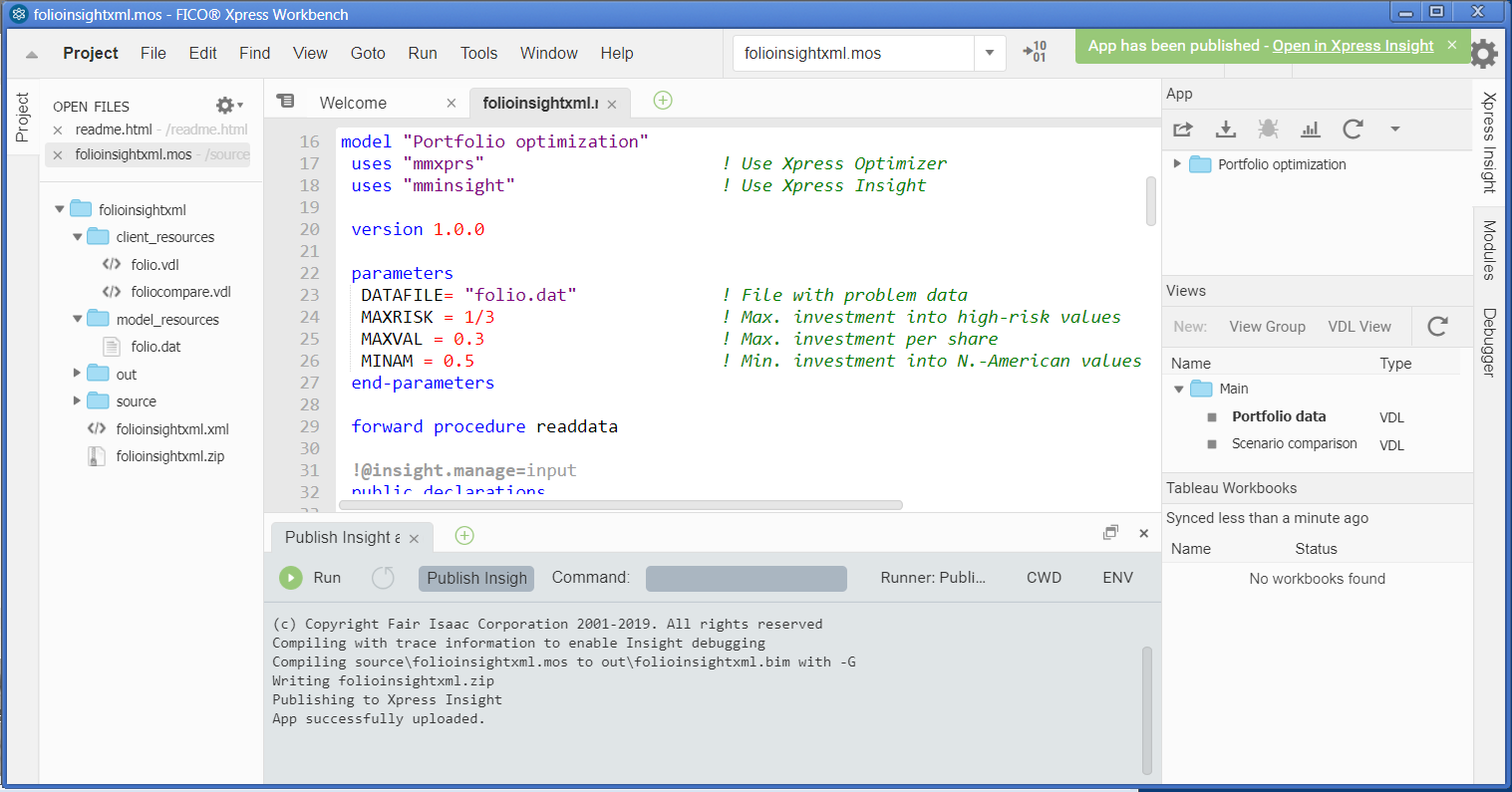

Eval/portfinsdepl.png

Figure 3: Publishing an Insight app from Xpress Workbench

To create a new app, select the 'publish to Insight' button Eval/butdeploy.png of Workbench: you will be prompted to enter your Insight credentials (for a default desktop installation these are admin / admin123) and specify a new name for your app. After successfully publishing the app a green box with a link to the new app in the Insight Web Client appears at the top right corner of the Workbench workspace. Following this link will take you to the app loaded into the Insight Web Client as shown in Figure Xpress Insight Web Client after app loading. Click onto the grey area to select and load a scenario, then choose the 'Run' button (for further detail, please see the instructions for the Insight Web Client in Section Evaluation steps for Scenario 5).

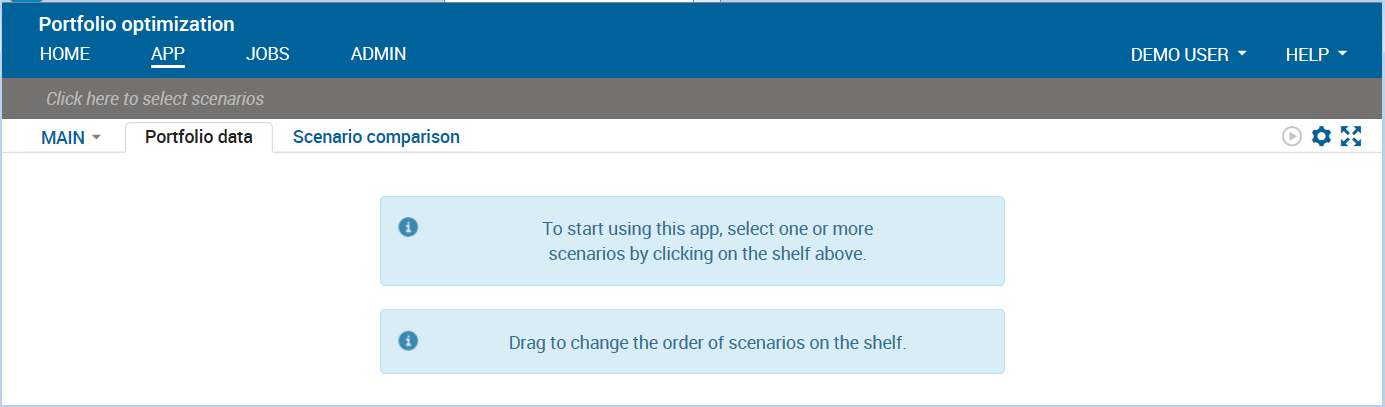

Eval/xi451proj.png

Figure 4: Xpress Insight Web Client after app loading

Further information

Deploying Mosel models to a host language

Open a Mosel model and select Deploy » Deploy or click the deploy button. This will open the Deploy dialog box. Select the programming language you wish to run the Mosel model from, and click the Next> button. This will open a Source Code Dialog containing the code for deployment.

Further information

Mosel console commands

As an alternative to running Mosel models within Xpress Workbench you may execute them with the Mosel standalone version. This mode is often preferrable for testing and experimentation, for instance, if you wish to invoke a sequence of model runs from a batch file.

At the command prompt, type the following command:

mosel exec foliolp

You will see output that looks like the following:

Total return: 14.0667
treasury: 30%
hardware: 0%
theater: 20%
telecom: 0%
brewery: 6.66667%
highways: 30%
cars: 0%
bank: 0%
software: 13.3333%
electronics: 0%

You can also specify new values for model parameters to be applied when executing the model:

mosel exec foliodata MAXVAL=0.5 OUTFILE="result2.dat"

Further information

See ``Xpress Mosel User Guide'', 1.1 `Entering a model'. See also ``Xpress Mosel Reference Manual'', 1.1 `What is Mosel' – `Running Mosel'.

Other Mosel topics

In addition to the topics addressed in this guide, the document ``Getting Started with Xpress'' describes how to draw SVG user graphs in Xpress Workbench (Chapter 5: `Drawing user graphs') and how to program heuristics with Mosel (Chapter 8: `Heuristics'). Further details on these topics can be found in the ``Xpress Mosel User Guide'', Part II `Advanced language features' that describes Mosel's programming facilities and includes other examples of heuristics, and under Part IV `Extensions and tools' – 16.3 `Graphics with mmsvg'.

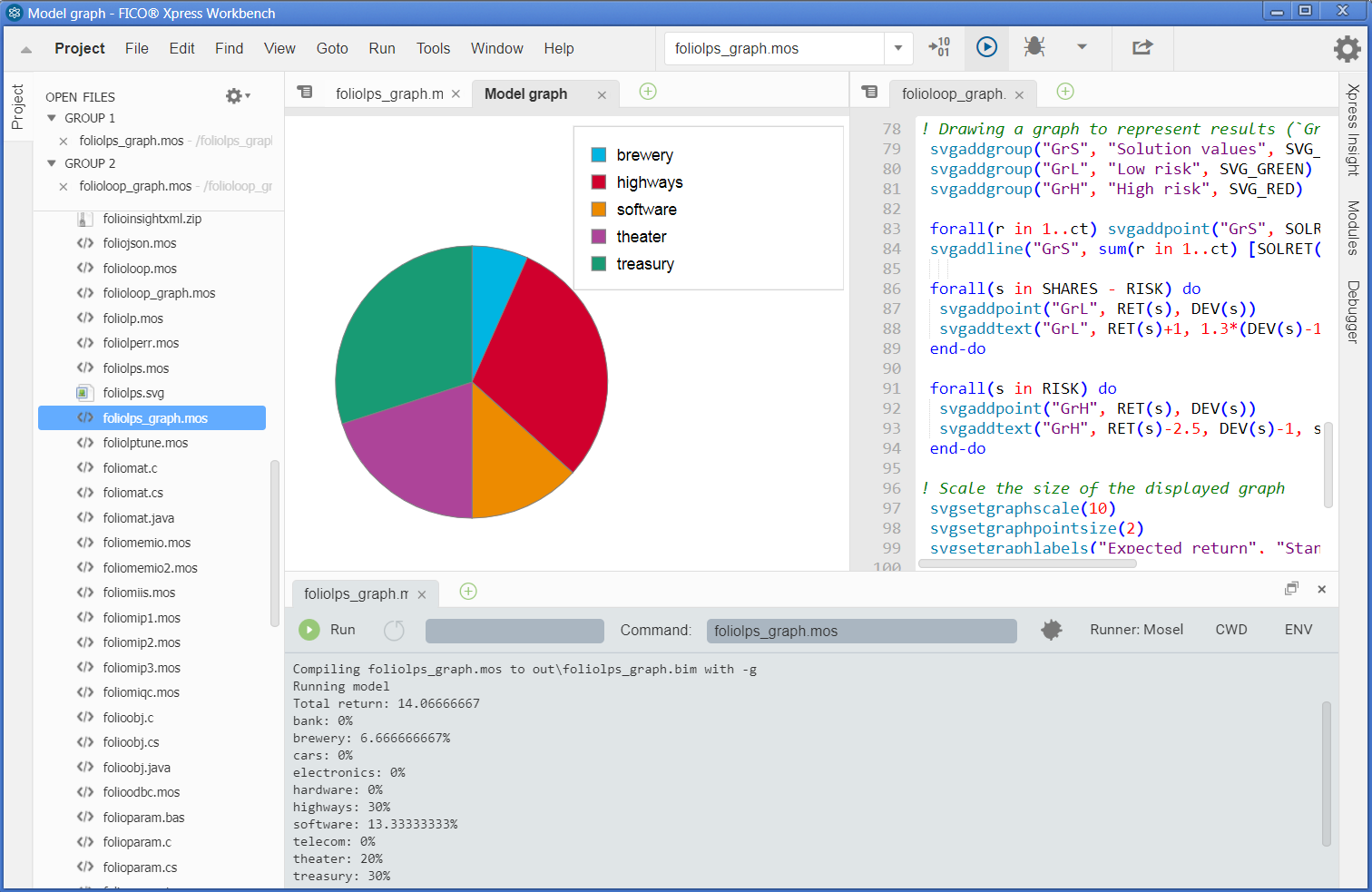

Eval/gswbsvg.png

Figure 5: Workbench with SVG user graph

Additional examples of modeling and programming with Mosel can be found in the directory \xpressmp\examples\. Also, the book ``Applications of Optimization with Xpress-MP'' (Dash Optimization, 2002) shows how to formulate and solve a large number of application problems with Xpress, accessible online: http://examples.xpress.fico.com/example.pl#mosel_book

Evaluation steps for Scenario 2

Implement and deploy a model in a programming language using the object-oriented API for Xpress solvers.

Tool for model development:  Object-oriented solver API
Type of problem: LP, MIP, QP, MIQP, NLP, MNLP
Tool for model deployment: Object-oriented solver API (C++, Java, .NET)

Implementations in C++, Java and C# of the optimization problems from the guide ``Getting Started with Xpress'' along with some other examples of different types of optimization problems can be found in the Xpress installation under xpressmp\examples\solver\optimizer\cpp\objects, xpressmp\examples\solver\optimizer\java\objects and xpressmp\examples\solver\optimizer\csharp\objects.

Further information

More examples and the complete documentation of the object-oriented APIs can be found in the Solver C++ User Guide, the Solver Java User Guide, the Solver .NET User Guide, the Xpress Optimizer C++ Reference, the Xpress Optimizer Javadoc and the Xpress Optimizer .NET Library Reference. Please refer to the Creating Xpress Solver Applications guide on how to setup and run programs with the Xpress libraries.

Evaluation steps for Scenario 3

Use your custom application to develop the model and then call the Xpress Optimizer libraries. Available for problems that can be solved with Xpress Optimizer

Tool for model development:  Custom application that calls optimizer libraries.
Type of problem: LP, MIP, QP, MIQP
Tool for model deployment: Optimizer libraries (C++/C, Java, .NET, Python, R)

See ``Getting Started with Xpress'', Part III: `Getting started with the Optimizer', which presents examples in C language with detailed explanation. The corresponding example files can be found in your Xpress installation (directory xpressmp\examples\getting_started\Optimizer). The Optimizer Java and .NET interfaces provide similar functionality.

If you are working with Python please refer to the examples that are documented in the chapter `Examples of use' of the ``Xpress Optimizer Python Interface User Manual''.

Further information

Evaluation steps for Scenario 4

Run a matrix that is readily available in LP or MPS format. Such a model may be executed through console commands, or applications that call Xpress Optimizer library functions.

Console commands

At the command prompt, type the following sequence of commands to execute the MPS matrix in file Folio.mps:

optimizer
readprob Folio
chgobjsense max
lpoptimize
printsol
quit

You will see output that looks like the following:

>optimizer
FICO Xpress Solver 64bit v9.1.0 Apr 14 2023
(c) Copyright Fair Isaac Corporation 1983-2023. All rights reserved
 Optimizer v41.01.07   [C:\xpressmp\bin\xprs.dll]
[xpress C:\] readprob Folio

Reading Problem FolioLP

Problem Statistics
           3 (      0 spare) rows
          10 (      0 spare) structural columns
          19 (      0 spare) non-zero elements
MIP Entity Statistics
           0 entities        0 sets        0 set members
[xpress C:\] chgobjsense max
[xpress C:\] lpoptimize
Maximizing LP FolioLP
Original problem has:
         3 rows           10 cols           19 elements
Presolved problem has:
         3 rows           10 cols           19 elements
Presolve finished in 0 seconds
Heap usage: 391KB (peak 548KB, 130KB system)

Coefficient range                    original                 solved
  Coefficients   [min,max] : [ 1.00e+00,  1.00e+00] / [ 1.00e+00,  1.00e+00]
  RHS and bounds [min,max] : [ 3.00e-01,  1.00e+00] / [ 3.00e-01,  1.00e+00]
  Objective      [min,max] : [ 5.00e+00,  3.10e+01] / [ 5.00e+00,  3.10e+01]
Autoscaling applied standard scaling

   Its        Obj Value      S   Ninf  Nneg        Sum Inf  Time
     0        42.600000      D      2     0       3.166667     0
     5        14.066659      D      0     0        .000000     0
Uncrunching matrix
Optimal solution found
Dual solved problem
  5 simplex iterations in 0.01 seconds at time 0

Final objective                         : 1.406665900000000e+01
  Max primal violation      (abs / rel) :       0.0 /       0.0
  Max dual violation        (abs / rel) :       0.0 /       0.0
  Max complementarity viol. (abs / rel) :       0.0 /       0.0
All values within tolerances
[xpress C:\] printsol

Problem Statistics
Matrix FolioLP
Objective *OBJ*

RHS *RHS*
Problem has      3 rows and     10 structural columns

Solution Statistics
Maximization performed
Optimal solution found after      5 iterations
Objective function value is    14.066659
type c/r to continue, anything else to finish >

Rows Section
   Number   Row     At      Value      Slack Value   Dual Value        RHS
 E     1  Cap       EQ      1.000000       .000000      8.000000      1.000000
 G     2  NA        LL       .500000       .000000     -5.000000       .500000
 L     3  Risk      UL       .333333       .000000     23.000000       .333333
type c/r to continue, anything else to finish >

Columns Section
   Number  Column   At      Value      Input Cost   Reduced Cost
 C     5  frac(1)   UL       .300000      5.000000      2.000000
 C     6  frac(2)   LL       .000000     17.000000     -9.000000
 C     7  frac(3)   BS       .200000     26.000000       .000000
 C     8  frac(4)   LL       .000000     12.000000    -14.000000
 C     9  frac(5)   BS       .066667      8.000000       .000000
 C    10  frac(6)   UL       .300000      9.000000      1.000000
 C    11  frac(7)   LL       .000000      7.000000     -1.000000
 C    12  frac(8)   LL       .000000      6.000000     -2.000000
 C    13  frac(9)   BS       .133333     31.000000       .000000
 C    14  frac(10)  LL       .000000     21.000000    -10.000000
[xpress C:\] quit

Further information

Xpress Optimizer Reference Manual'', Chapter 6: `Console and Library functions'.

Xpress Optimizer library functions

See ``Getting Started with Xpress'', Chapter 14: `Matrix input', which presents an example in C language with detailed explanation.

Evaluation steps for Scenario 5

Xpress Insight has its own installer that needs to be executed in addition to the standard installation of the Xpress suite. Please see the Xpress Insight quick installation guide for details on the installation process.

Inspecting Insight apps with the Insight Web Client

With a default desktop installation, start up the Xpress Insight Web Client by directing your web browser to http://localhost:8860/ and use the default credentials of admin / admin123. Mosel models with their data files and optional configuration settings are input into Xpress Insight in the form of app archives. Among the examples in the examples/getting_started/Mosel subdirectory of the Xpress installation you will find the two archives folioinsight.zip and folioinsightxml.zip. Both archives include a slightly edited version of the Mosel model file foliodata.mos with the required input datafile, the second archive adds an XML configuration file and VDl view definitions for the Xpress Insight GUI. Figure Xpress Insight Web Client after app loading shows a screenshot of the Xpress Insight GUI with the folioinsightxml.zip app.

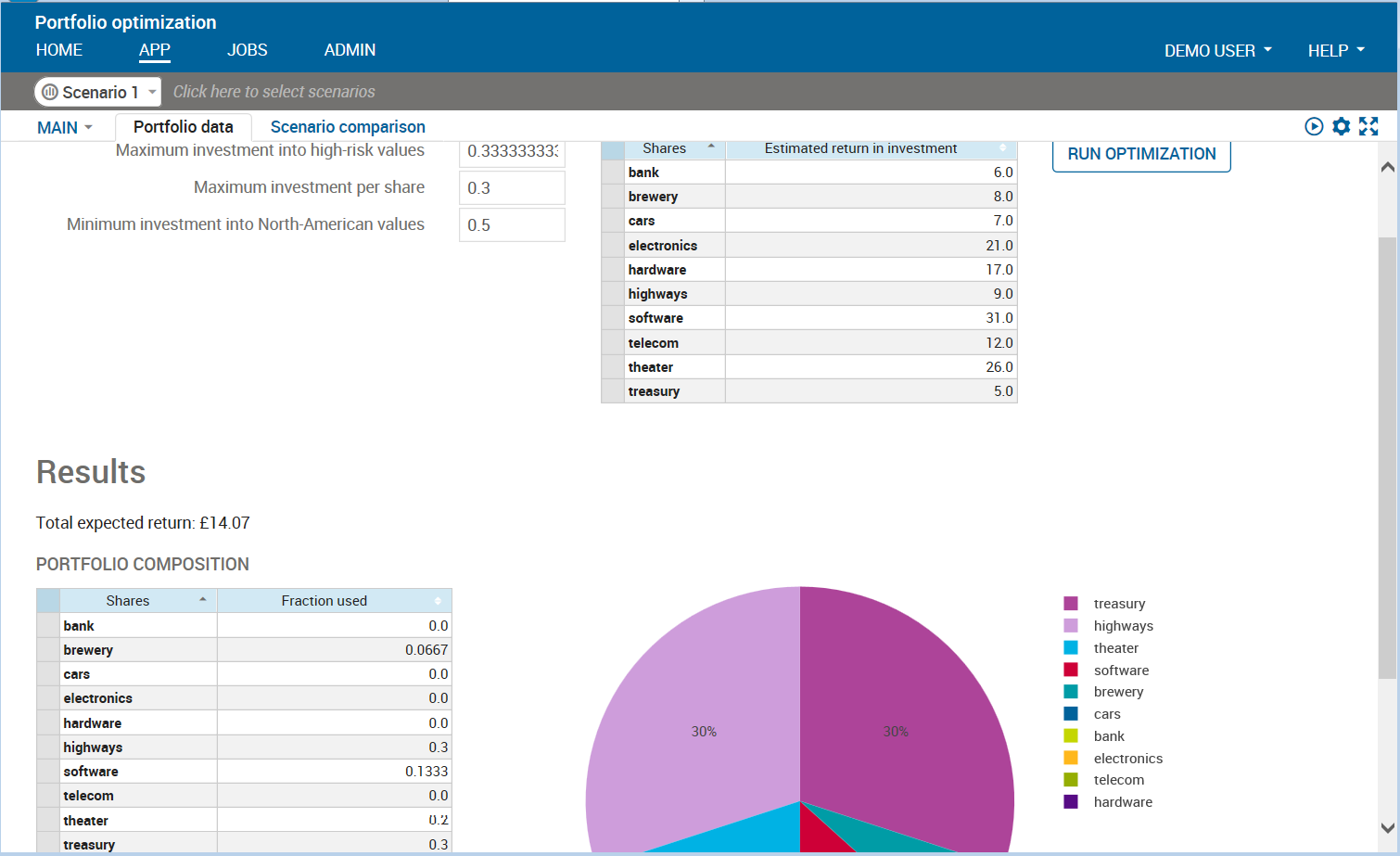

Eval/xi451scen4.png

Figure 6: Xpress Insight Web Client

Follow the instructions in Section 9.4.3 `Working with the Xpress Insight Web Client' of the `Getting Started' guide to load the folioinsightxml.zip app and run a scenario. Edit the parameters and input data in the view Portfolio data and re-run via the 'Run optimization' button. You may also want to clone the scenario, edit some of its data (for example, try setting values 0.2 or 0.4 for the parameter 'Maximum investment per share') and compare the results in the view Portfolio data.

Further information

  • Introduction to working with Xpress Insight: Xpress Insight Web Client User Guide.
  • Documentation: Xpress Insight Developer Guide.
  • Examples: load and explore the Insight app examples under the folder examples/insight of the Xpress distribution, in particular quick_start.zip (app template) and the demo of VDL features in vdl/vdl_language.zip.
